FBT CLA 208SA
Active Bass reflex subwoofer - 2x8” - 600Wrms
Artnr. 703554

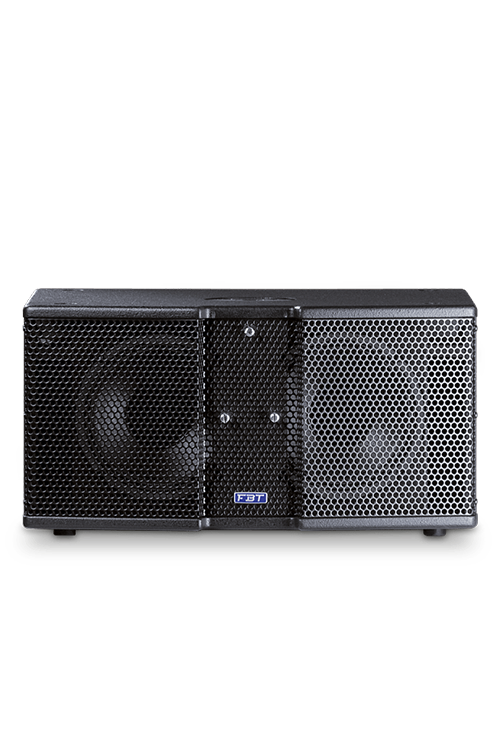

CLA 208SA is a 2 x 8″ active subwoofer in bass-reflex design and birch ply enclosure. The internal Class D amplifier delivers 600W and is matched with a switch mode power supply and a DSP processor with filtering functions, equalization and speaker protection. Created with the idea of extending the CLA608A’s low frequency performance in live applications, the CLA208SA serves as the base support for the CLA604A column speaker which can either be frontally mounted to the sub, as well as fixed upon the optional stand through the M20 socket on the upside of the sub. The CLA208SA subwoofers are modular as well, and they can be stacked to enlarge and increase the maximum SPL.
CLA system features:
- High-level sound quality from 50Hz to 20kHz expressly developed for live performance
- Long distance sound projection and better SPL distribution towards the audience
- Great and dynamic power performance thanks to tri-amplification system
- Lightweight and easy to carry
- Design and elegance for an easy integration even in the most demanding installations
- Very compact dimensions enable the listener to concentrate on sound and not on speakers!
- High horizontal dispersion
The internal XLR signal link system and Neutrik Powercon power supply on both the sub and the satellite, allows for hiding wires and cables from open sight, preserving the system’s clean aesthetics.
600W RMS 129dB SPL Processed Active Subwoofer
- Active subwoofer in bass-reflex design
- 2 x 8″ (200mm) custom, high-excursion woofer with 2″ (50 mm) voice coil
- 50Hz to 180Hz frequency response
- Class D 600W RMS amplifier with switch mode power supply
- DSP processor with 4 available presets
- Control panel with combo XLR/Jack stereo input and link, XLR Hi-pass out stereo, volume, presets, 0°-180° phase switch, status LED
- Neutrik POWERCONN input and link
- 15mm birch plywood enclosure with anti-scratch paint finish, stackable
- M20 stand adapter, 2 integrated handles, front hardware to sustain CLA206LA modules
- Suitable for low frequency extension and reinforcement of the CLA604A array, especially for live performance
- Vertus is also available in white colour
INPUT CONNECTOR:
stereo XLR with loop,HP out
NET DIMENSION (WXHXD):
550x270x500 mm/inch
NET WEIGHT:
20 / 16.4 kg/lb
MAXIMUM SPL CONT/PEAK:
125/129 half space dB
DISPERSION:
Omnidirectional HxV
CROSSOVER FREQUENCY:
0.15 KHz
AC POWER REQUIREMENTS:
450 VA
BUILT-IN AMPLIFIER LF/HF:
600 W RMS
BUILT-IN AMPLIFIER PEAK LF/HF:
1200 W
FREQUENCY RESPONSE:
50Hz - 180Hz -6dB
LOW FREQUENCY WOOFER:
2 x 8\" - 2\" coil inch
