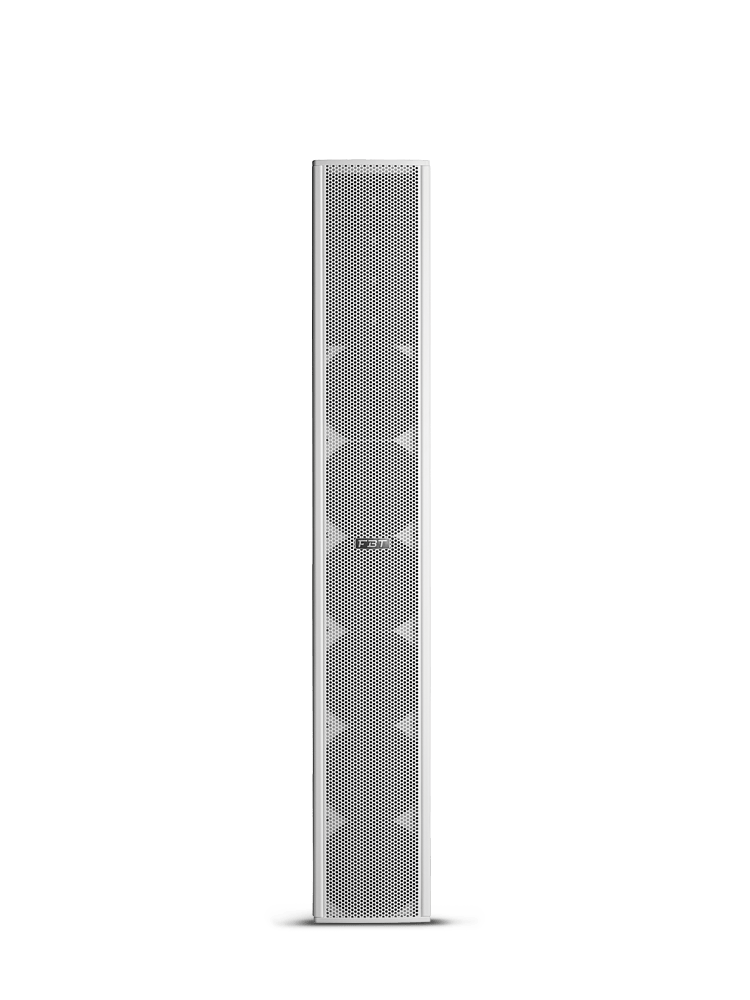

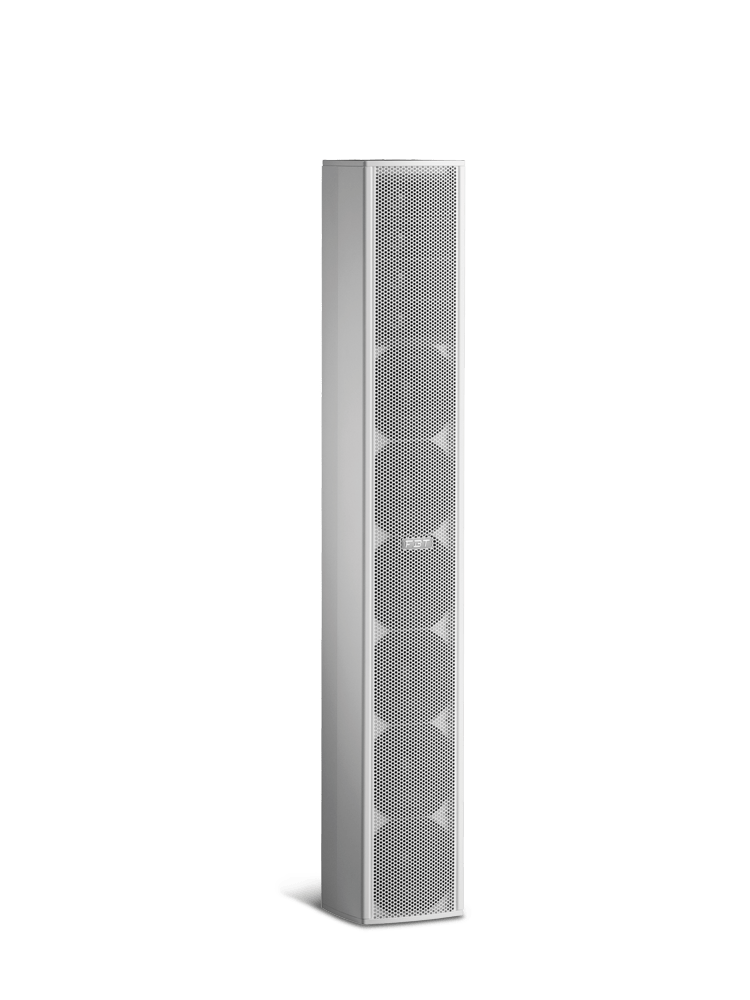

FBT CLA 604

2-way Passive Line array column - 6x4” + 4x1” - 500Wrms - 10

Artnr. 495313

Passive Column Line Array

500W 8ohm 123dB SPL
  •  2-way passive column line array
  •  6 x 100mm (4”) custom woofer with 25mm (1”) voice coil
  •  4 x 25mm (1”) dome neodymium tweeter on a waveguide
  •  Frequency response from 130Hz to 20kHz
  •  100V transformer with 2 levels of power, 100 and 200W
  •  100°H x 20°V dispersion
  •  4-pole Euroblock input connector: 8ohm – 100W/100V – 200W/100V
  •  Cabinet in alluminio estruso con verniciatura a polvere.
  •  Extruded-aluminum powder-coated cabinets
  •  Wall-mount installation bars are supplied
  •  Expandable line array by adding CLA604 modules in order to increase SPL and reduce the vertical radiation lobe width
  • Ideal for fixed installation in reverberant environments, it can improve both music and voice intelligibility by improving direct/ reflected sound quality
  • Standard white finish RAL 9016
  • EN 54-24 EC Certificate of Conformity
INPUT CONNECTOR:
cable 4 connectors
NET DIMENSION (WXHXD):
130x849x130 / 5.12x33.42x5.12
NET WEIGHT:
10,5 kg
TRANSPORT DIMENSION (WXHXD):
170x900x170 - 6.7x35.4x6.7
FREQUENCY RESPONSE:
140Hz - 20 KHz -6dB
LOW FREQUENCY WOOFER:
6x4"
HIGH FREQUENCY DRIVER:
6x1"
MAXIMUM SPL CONT/PEAK:
110 (1W, 1m) dB
DISPERSION:
200°X70° (500Hz) / 190°x40° (1KHz) / 120°x15° (2kHz) / 110°x30° (4kHz) HxV
RECOMMENDED AMPLIFIER:
250W
LONG TERM POWER:
100W
SHORT TERM POWER:
500W
NOMINAL IMPEDANCE:
8 ohm /
100V TRAFO:
100W/50W

Artnr. 703572

FBT VT-W 604 W

Monteringskit för väggmontering av CLA 604. Vit RAL9016
