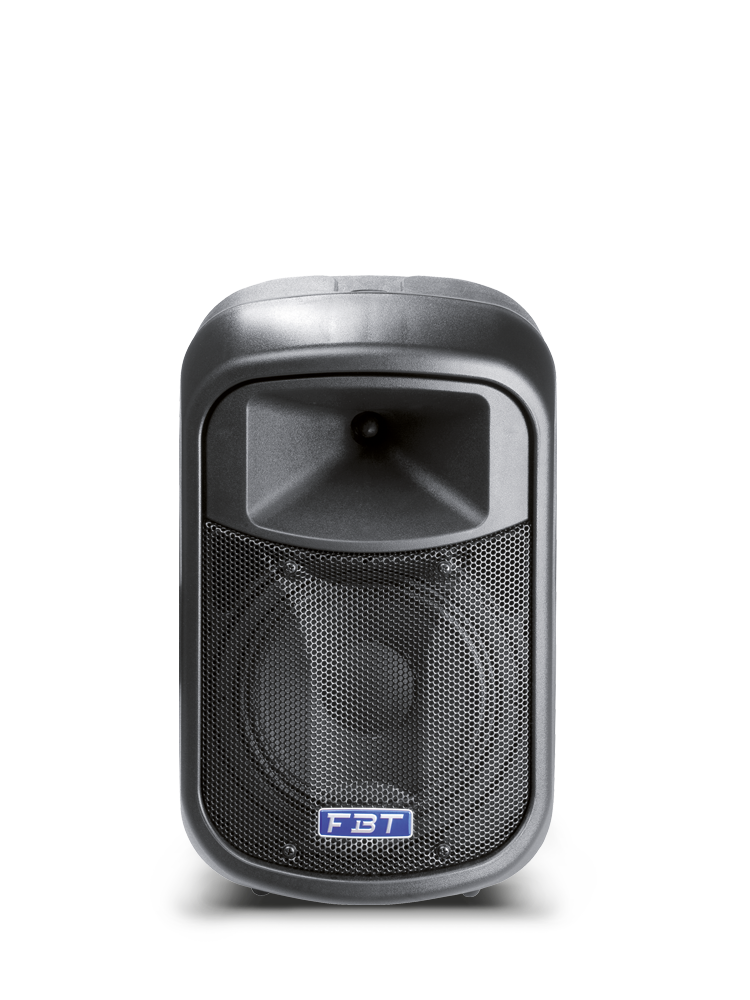

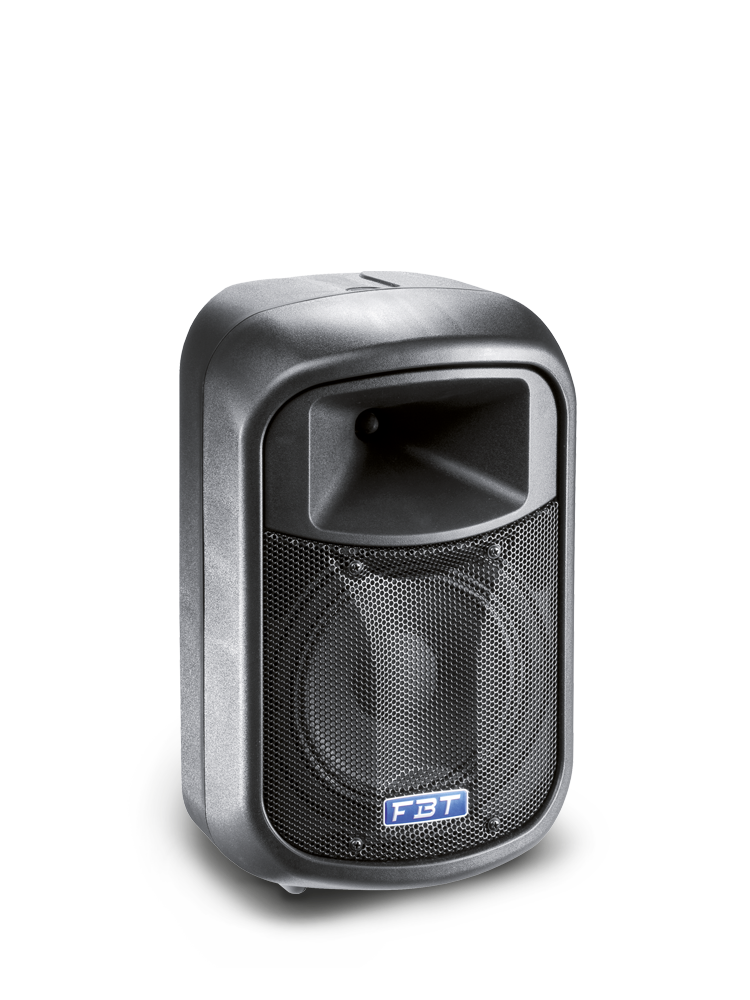

FBT J 8A

2-way Active speaker - 8" + 1" - 200Wrms+50Wrms

Artnr. 703645

Flera modeller tillgängliga

2-way bi-amplified system in Bass-Reflex2-way bi-amplified system in Bass-Reflex
Polypropylene enclosure with integrated handle except J 5A/5
2 x M10 anchoring points (15A, 12A, DJ 15A), 2 x M6 suspension points (8A, 5A)
25mm (1”) HF custom AF compression driver (15A, 12A, 8A, DJ 15A)
90°H x 60°V constant directivity horn (15A, 12A, 8A, DJ 15A)?
Processed Active Monitor

200W+ 50W RMS – 124dB SPL
200mm (8’’) custom woofer with improved efficiency and linearity
200Wrms class D amplifier for LF and 50Wrms for HF.
Low noise toroidal transformer power supply
On-board Digital Signal processing with dynamic equalizations and protections for high SPL and high reliability.
2 DSP preset for maximum acoustical flexibility
Available in white colour 8AW

DIMENSION (WXHXD):
255 x 415 x 245 mm
WEIGHT:
8.2 kg
MAXIMUM SPL CONT/PEAK:
120/124 dB
DISPERSION:
90° x 60° HxV
INPUT IMPEDANCE:
22 Kohm
INPUT CONNECTOR:
XLR - jack with loop
POWER CORD:
5 / 16.4 m/ft
BUILT-IN AMPLIFIER LF/HF:
200/50 W RMS
FREQUENCY RESPONSE:
60Hz - 20KHz -6dB
LOW FREQUENCY WOOFER:
8 - 1.7 coil inch
HIGH FREQUENCY DRIVER:
1 -1 coil inch
CONFIGURATION:
2 way

Artnr. 703659

FBT V 37

Cover J 8

Artnr. 703662

FBT SJ-8

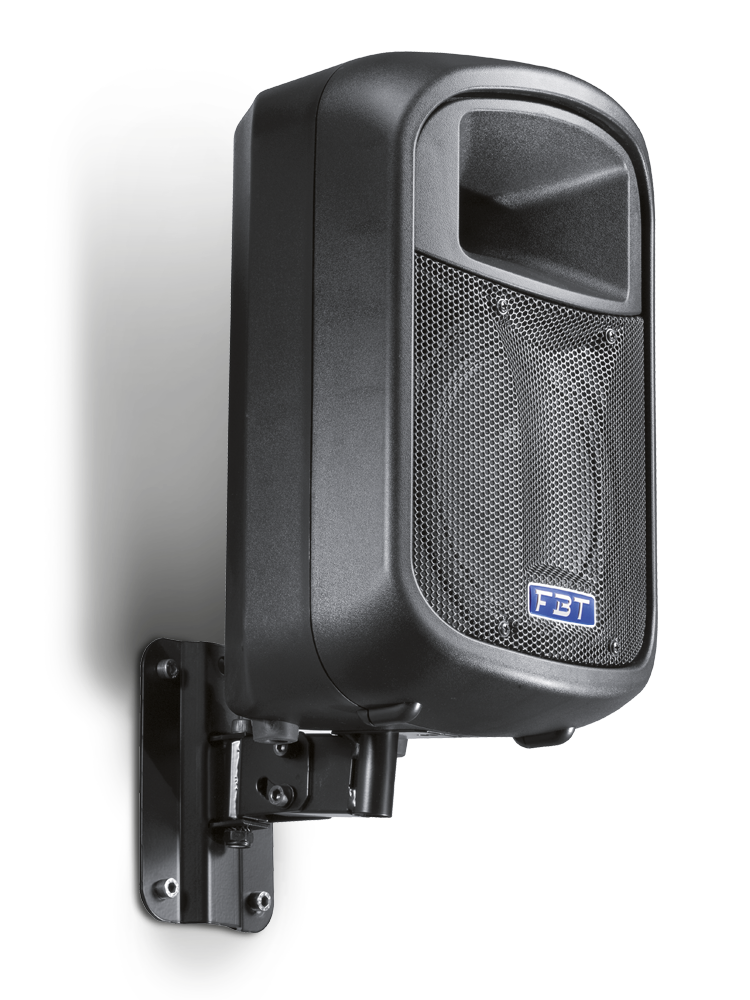

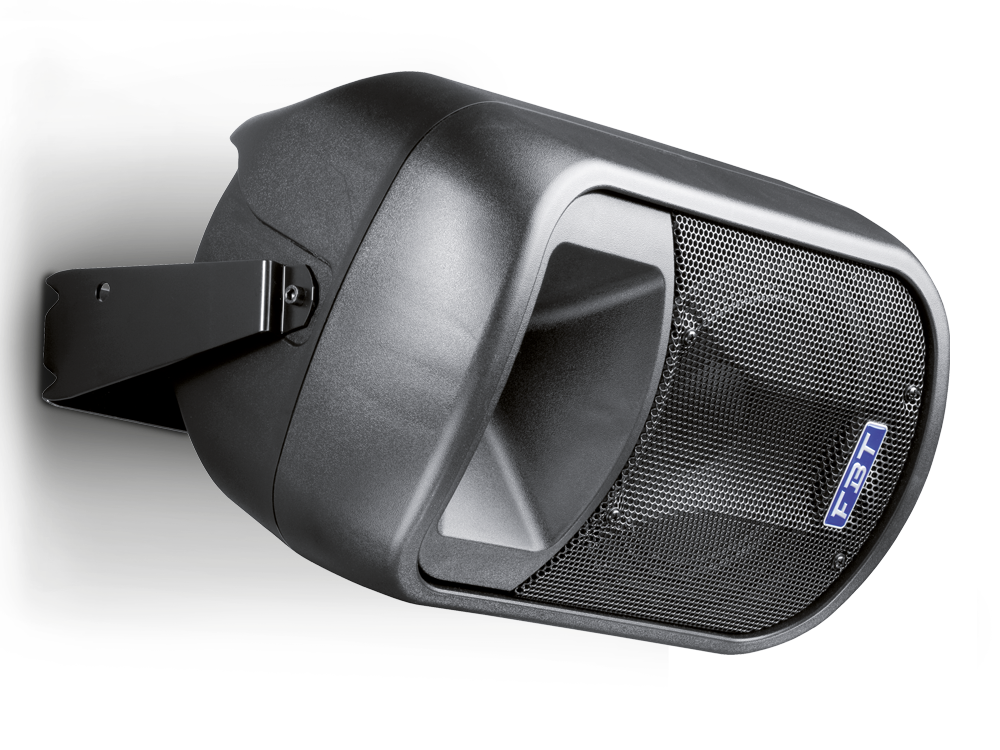

Directional wall mount for J 8

Artnr. 703664

FBT SJ-8U

U bracket horizontal wall mount J 8

Artnr. 703666

FBT SJ-8T

"Adjustable metal "T" stand for No. 2 J 8"

Artnr. 703667

FBT AJ-8

Adapter from Ø 35 mm to Ø 25 mm J 8
