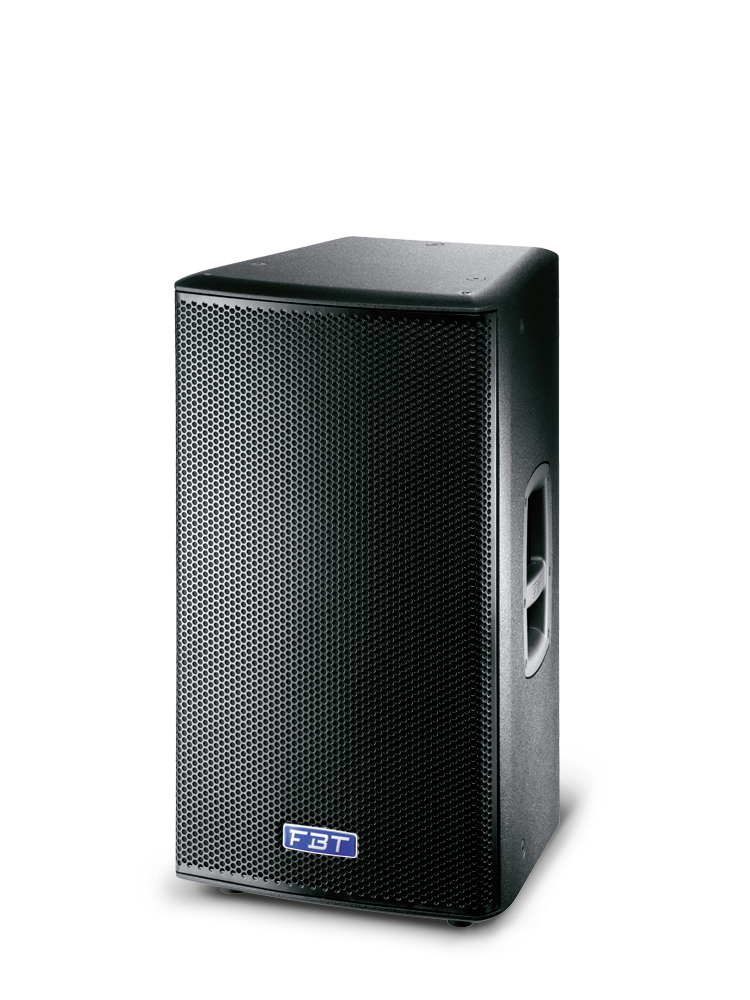

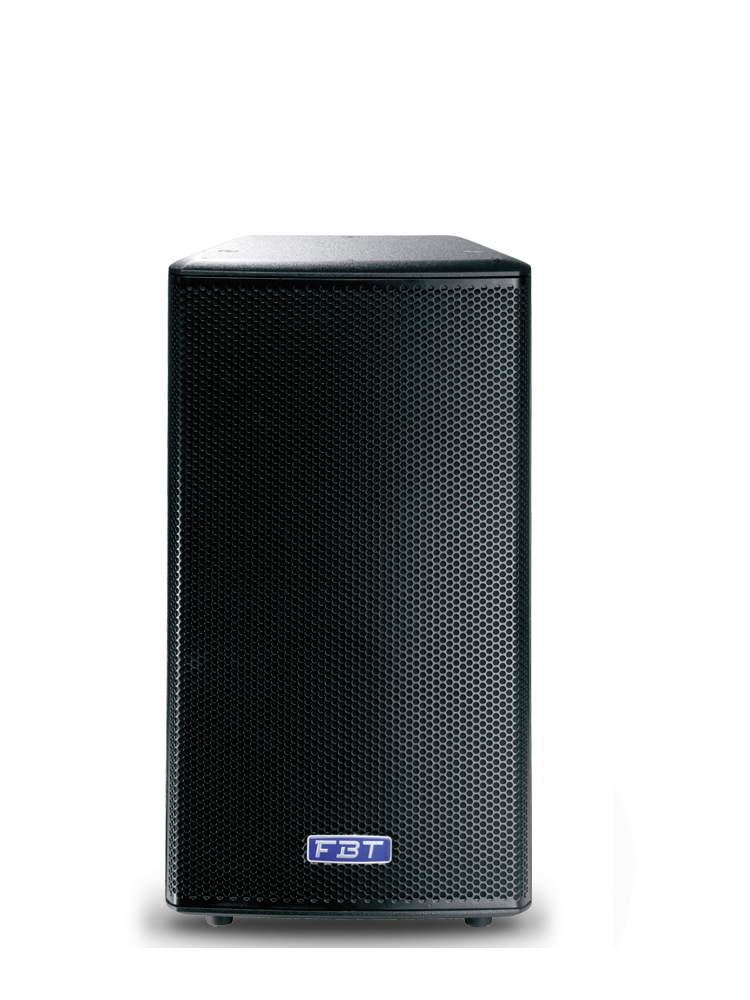

FBT MITUS 114
2-way Passive speaker - 14" + 1,4" - 700Wrms
Artnr. 703834
The FBT MITUS 114 two-way passive reinforcement speaker system shall incorporate 1 x 14″ B&C neodymium woofer with 3″ voicecoil and 1.4″ exit B&C neodymium driver with 2.5″ voice coil coupled to a rotatable 70 x 50 degree dispersion horn; thanks to the rotatable HF horn it is possible to create horizontal arrays of 2 enclosures for a total coverage of 120 degrees.
DISPERSION:
70°x50° HxV
CROSSOVER FREQUENCY:
1.4 KHz
RECOMMENDED HP FILTER:
40hz - 24dboct
FREQUENCY RESPONSE:
50Hz - 18Khz -6dB
INPUT CONNECTOR:
2 x speakon NL4MD-V in&thru
LOW FREQUENCY WOOFER:
1x14 - 3 coil - neodymium inch
DIMENSION (WXHXD):
380 x 705 x 380 mm
HIGH FREQUENCY DRIVER:
1 x 1.4 - 2.5 coil inch
WEIGHT:
22.9 kg
SENSITIVITY (@1W/1M):
100 dB
MAXIMUM SPL CONT/PEAK:
128/132 dB
RECOMMENDED AMPLIFIER:
700 W RMS
LONG TERM POWER:
350 W
SHORT TERM POWER:
1400 W
NOMINAL IMPEDANCE:
8 ohm
CONFIGURATION:
1 reflex way
