FBT MITUS 115A
2-way Active speaker - 15" + 1" - 600Wrms+300Wrms
Artnr. 703828

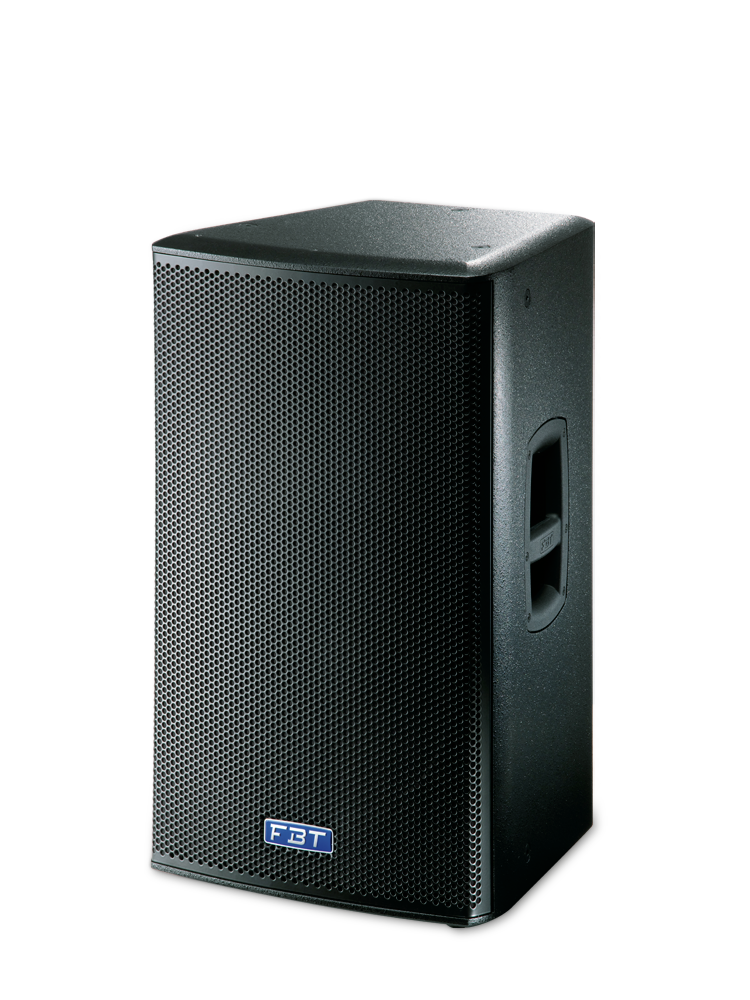

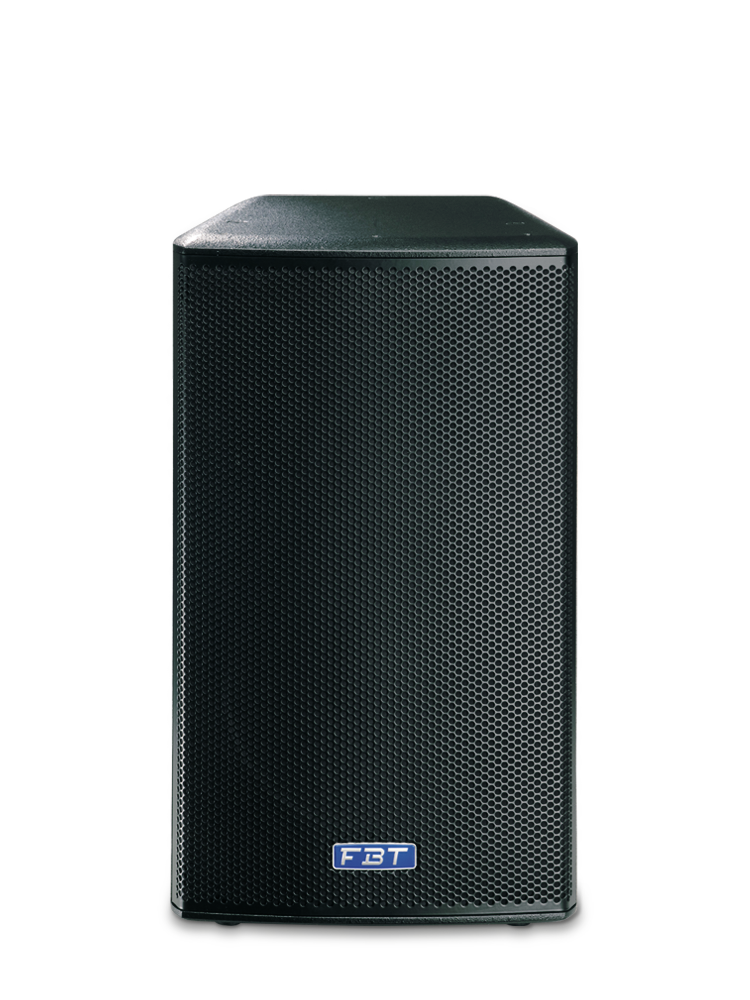

The MITUS 115A is an Active cabinet featuring a B&C 15″ Low Frequency with a 1″ exit 1.7″ VC B&C rotatable horn driven by a 600 Watt + 300 Watt amplifer capable of delivering up to 133dB SPL. Housed in 0.59″ Baltic Birch Ply wood and covered in our tour grade black finish
- 2-way, bi-amplified, bass-reflex design
- 380 mm (15”) B&C neodymium magnet woofer with 75 mm (3”) voice coil
- 25 mm (1”) exit B&C neodymium magnet HF driver with 44 mm (1.7’’) voice coil with 80°H x 50°V rotatable horn
- Class D built-in amplifiers, 600WRMS to the LF and 300WRMS to the HF, switch mode power supply
- Frequency response from 46Hz to 20KHz
- DSP with 8 eq presets
- Control panel with XLR input and link, volume, presets, HP-filter, ground-lift
- 15 mm (5/8”) birch plywood enclosure, scratch resistant black paint finish
- Eight M10 fly points, 35 mm (1.38’’) speaker stand socket and two FBT design aluminium handles
- Ideal for live sound reinforcement applications as front of house main PA. Also suited for permanent installations
- Very lightweight, only 28Kg
DIMENSION (WXHXD):
425 x 750 x 421 mm
WEIGHT:
28 kg
MAXIMUM SPL CONT/PEAK:
127/133 dB
DISPERSION:
80°x50° HxV
INPUT IMPEDANCE:
22 Kohm
INPUT CONNECTOR:
XLR with loop
POWER CORD:
5 / 16.4 m/ft
BUILT-IN AMPLIFIER LF/HF:
600/300 W RMS
FREQUENCY RESPONSE:
46Hz - 20Khz -6dB
LOW FREQUENCY WOOFER:
1x15 - 3 coil neodymium inch
HIGH FREQUENCY DRIVER:
1x1 -1.7 coil inch
CONFIGURATION:
2 way
