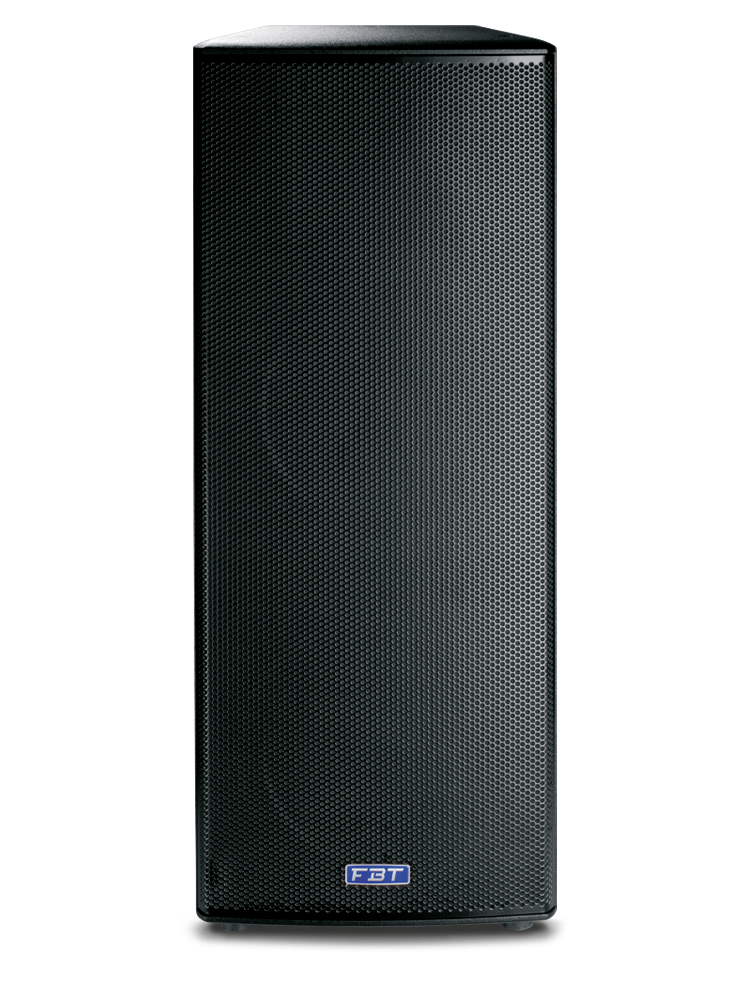

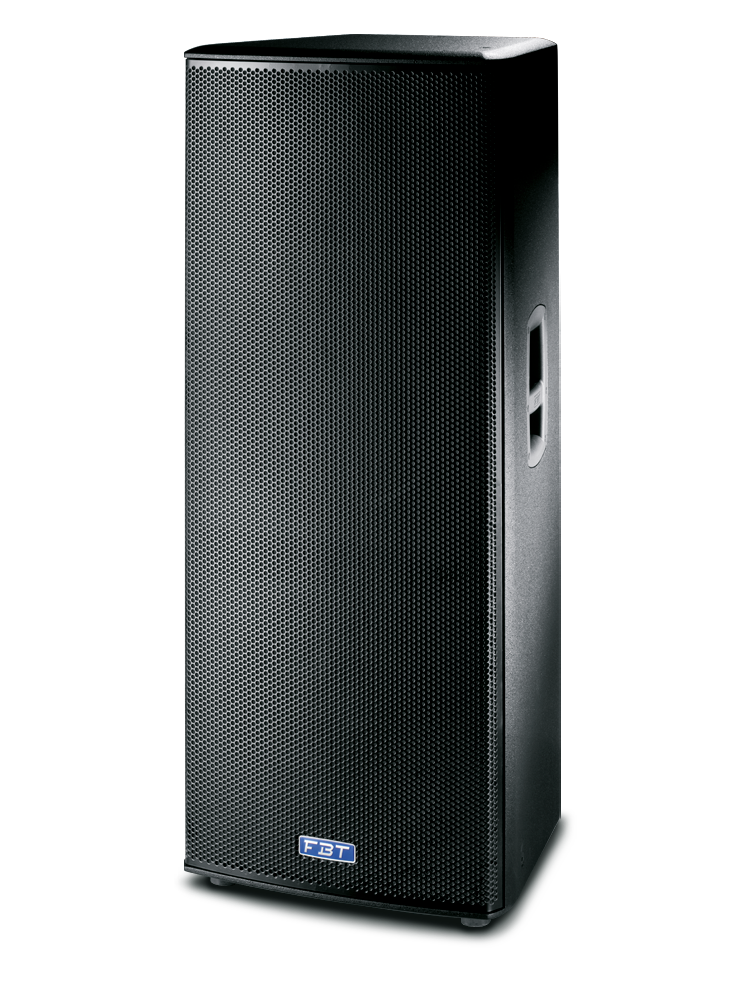

FBT MITUS 215
2-way Passive speaker - 2x15" + 2" - 1600Wrms "
Artnr. 703831
The FBT MITUS 215 is a two-way passive reinforcement speaker featuring 2 x 15” B&C neodymium woofer with 3” voice coil and 2” exit B&C neodymium driver with 2.5” voice coil coupled to a rotatable 60° x 40° horn 1600W/4ohm – 138dB SPL
- 15mm / 0.59″ baltic birch plywood cabinet
- Recommended amplifier 1600W RMS / 4 Ohm
- 2 x15″ B&C neodymium woofer with 3″ voice coil
- 2″ exit B&C neodymium driver with 2.5″ voice coil
- 60° H x 40° V rotatable horn
- Input panel with 2 x Neutrik speakon NL-4MDV in & link
- SPLcapability: 138dB
- 12 x M10 fly points
- Completely Manufactured in Italy
DISPERSION:
60°x40° HxV
CROSSOVER FREQUENCY:
1.2 KHz
RECOMMENDED HP FILTER:
40hz - 24dboct
FREQUENCY RESPONSE:
47Hz - 20Khz -6dB
INPUT CONNECTOR:
2x speakon NL4MD-V in & thru
LOW FREQUENCY WOOFER:
2x15 - 3 coil neodymium inch
DIMENSION (WXHXD):
493 x 1245 x 471 mm
HIGH FREQUENCY DRIVER:
1x2 - 3 coil inch
WEIGHT:
48 kg
SENSITIVITY (@1W/1M):
103 dB
MAXIMUM SPL CONT/PEAK:
134/138 dB
RECOMMENDED AMPLIFIER:
1600 W RMS
LONG TERM POWER:
800 W
SHORT TERM POWER:
2800 W
NOMINAL IMPEDANCE:
4 ohm
CONFIGURATION:
2 way
