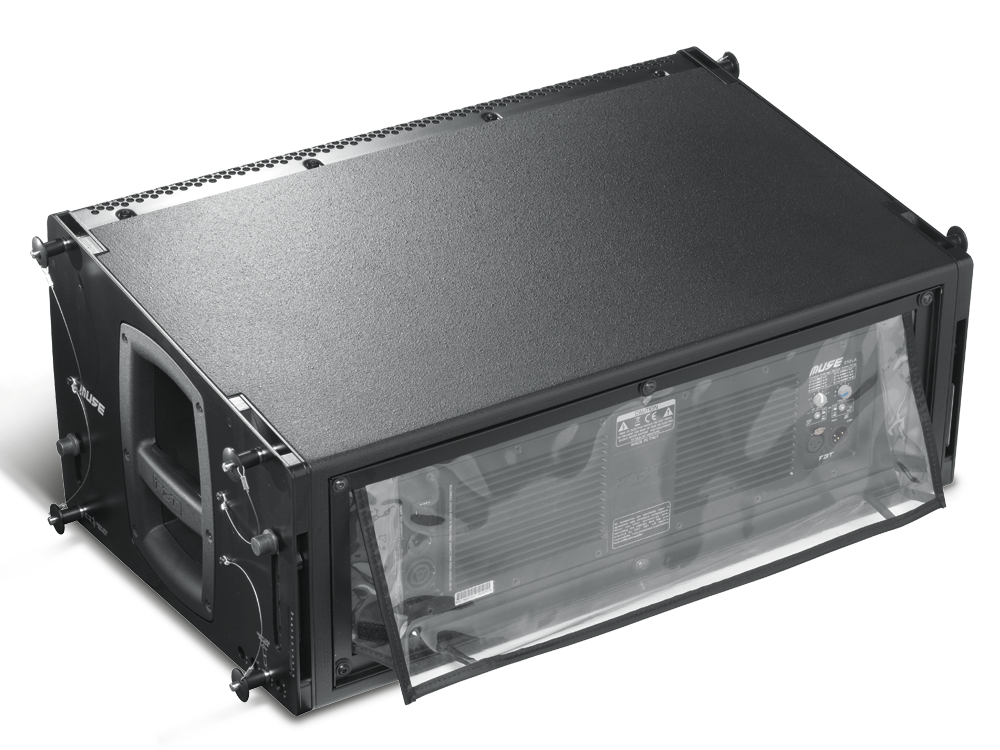

FBT MUSE 210L

Passive line array - 2x10"LF + 2x1''HF- 600Wrms+300Wrms

Artnr. 703716

The Muse 210 L is a precision coverage Passive Line array box 2 x 10″ 2x B&C 1″ compression drivers recommended amplifiers 800W + 250W RMS – 133DB SPL 16 Ohm LF + 32 Ohm HF. 90° x 10° dispersion max dependant upon number of elements. All housed in Baltic birch ply.

A true line array system encompassing advanced technology and refined Italian engineering – these are the principles behind MUSE, a new sound reinforcement solution from FBT that redefines the modern line array in terms of power, size, light weight, flexibility and ease of use. True modularity means that MUSE is ready for any application, from a small installation using two enclosures to a large outdoor concert deploying 16 speakers per hang.

CONFIGURATION:
2 way
RECOMMENDED AMPLIFIER:
800LF / 200HF W RMS
LONG TERM POWER:
400LF / 100Hf W
SHORT TERM POWER:
1600LF / 400HF W
NOMINAL IMPEDANCE:
16LF / 32HF ohm
FREQUENCY RESPONSE:
60Hz - 18KHz -6dB
LOW FREQUENCY WOOFER:
2x10 - 2.5 coil inch
HIGH FREQUENCY DRIVER:
2x10 - 1.7 coil inch
MAXIMUM SPL CONT/PEAK:
128/135 dB
DISPERSION:
90° x 10° dependant upon n° of elements HxV
INPUT CONNECTOR:
2 x Speakon NL4 in & throu
DIMENSION (WXHXD):
652 x 296 x 425 mm
WEIGHT:
38 kg
