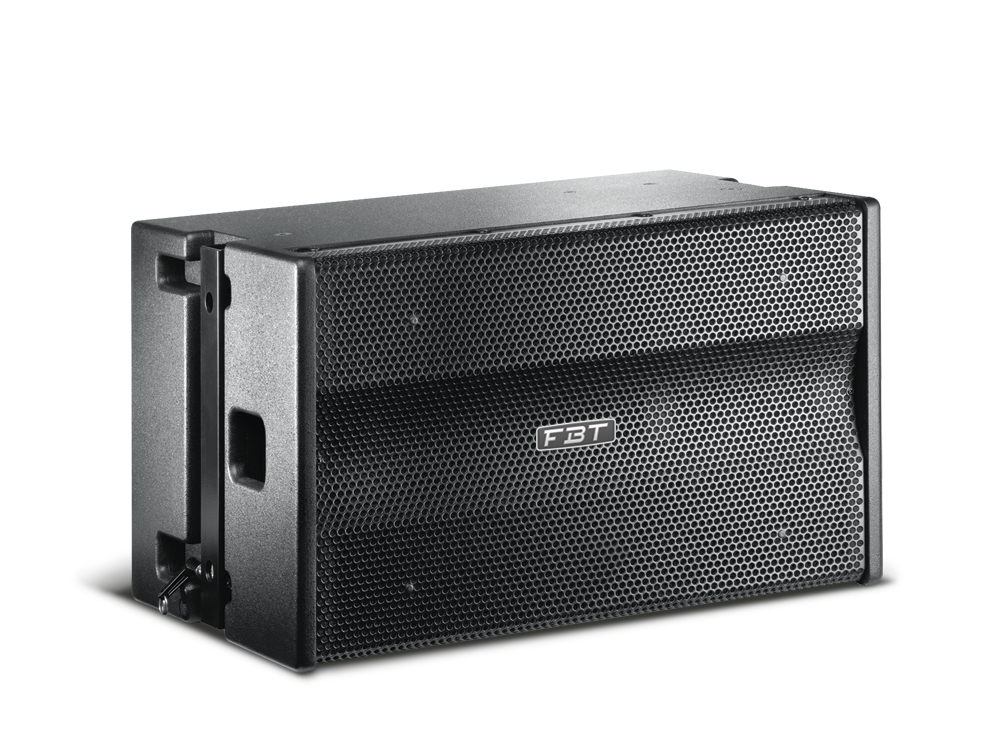

FBT QSA 112

2-way Passive Line Array - 12"+3X1" - 600Wrms+240Wrms-15°

Artnr. 703772

The QSA 112 is part of the QSA passive constant curvature array featuring 1 x 12″ inch driver and 3 x 1″ driver. 100H x 10V degree dispersion. Recommended amplification 600w/300w (Bi-Amp) RMS @ 8 Ohm will deliver 138dB SPL This great combination is in a 18mm Baltic birch plywood cabinet completely made in Italy.

The fixed angle approach and constant curvature technology permit to simplify set-up while granting the best uniformity of coverage and SPL in the audience. Originally Intended for small and mid-sized venues, the QSA112/QSA112.0 combination, matched with the dedicated QS118S subwoofer, perform well also in medium/large touring events and is designed to the same high standards and uses the highest quality components which already characterize QSA’s serious approach to pro-sound. The QSA112/112.0 delivers extraordinary power handling, clarity, flexibility and, of course, stunning sound in an attractive, easy to handle and affordable package.

CONFIGURATION:
2 way
RECOMMENDED AMPLIFIER:
800/200 W RMS
LONG TERM POWER:
175/100 W
NOMINAL IMPEDANCE:
8 (8/8) ohm
FREQUENCY RESPONSE:
70Hz - 23Khz -6dB
LOW FREQUENCY WOOFER:
8 -2 coil - neodymium inch
HIGH FREQUENCY DRIVER:
6 pleated diaphragm - neodymium inch
MAXIMUM SPL CONT/PEAK:
120/127 - 123/131 dB
DISPERSION:
100° x 10° HxV
INPUT CONNECTOR:
2 x speakon NL4 in&thru
DIMENSION (WXHXD):
450 x 220 x 350 mm
WEIGHT:
30 kg

Artnr. 703785

FBT MD-C 215FSA

Cover for Modus 215 FSA

Artnr. 703752

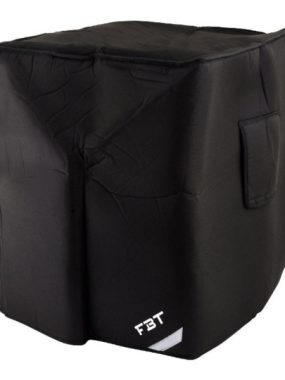

FBT VHA-CH 118S
