FBT StageMaxX 12MA

2-way Bass reflex Active Stage monitor - 12"+ 1" - 400Wrm

Artnr. 703597

Flera modeller tillgängliga

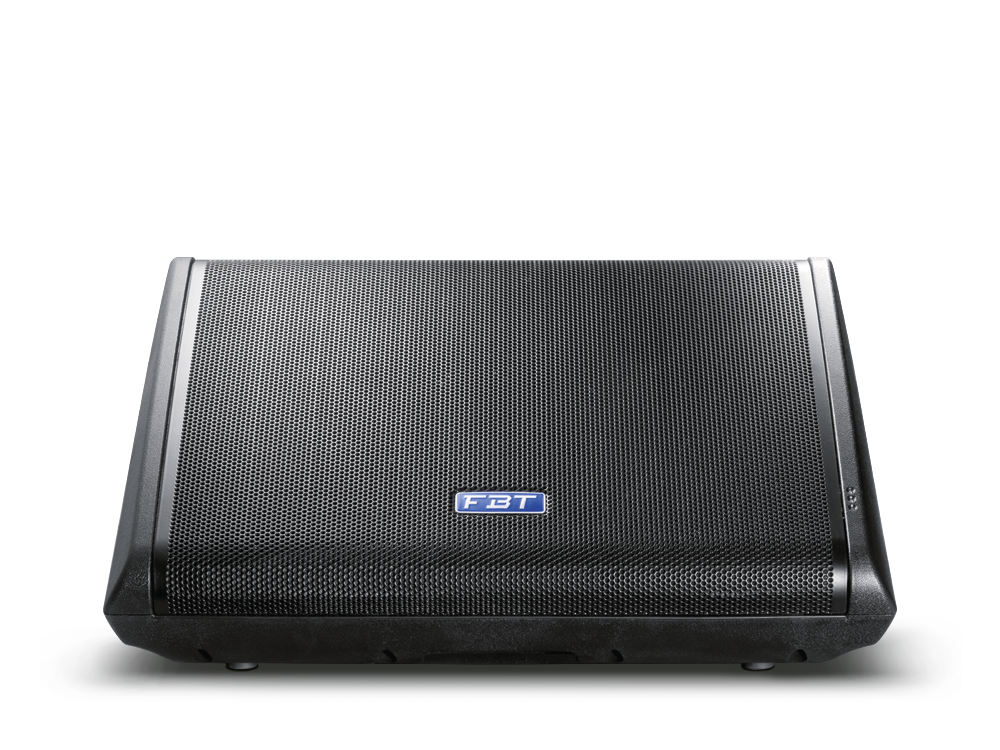

StageMaxX 12Ma features a 12” B&C loudspeaker custom made for FBT and coaxially mounted with a B&C 1” exit throat compression driver.
The coaxial configuration allows perfect alignment of the acoustic centers of the transducers, guaranteeing symmetry of dispersion and improving focus of the stereo image in Left-Right configuration.
Bi-amplification design with high dynamic Class D amplifiers delivering 400W + 100W RMS through a switch mode power supply.
Digital Signal Processor with 4 factory equalization presets provides simple and efficient EQ adjustment to optimize the acoustical response for different applications.
The FOH preset allows the use in suspended installation as well as ‘drum fill’ applications.

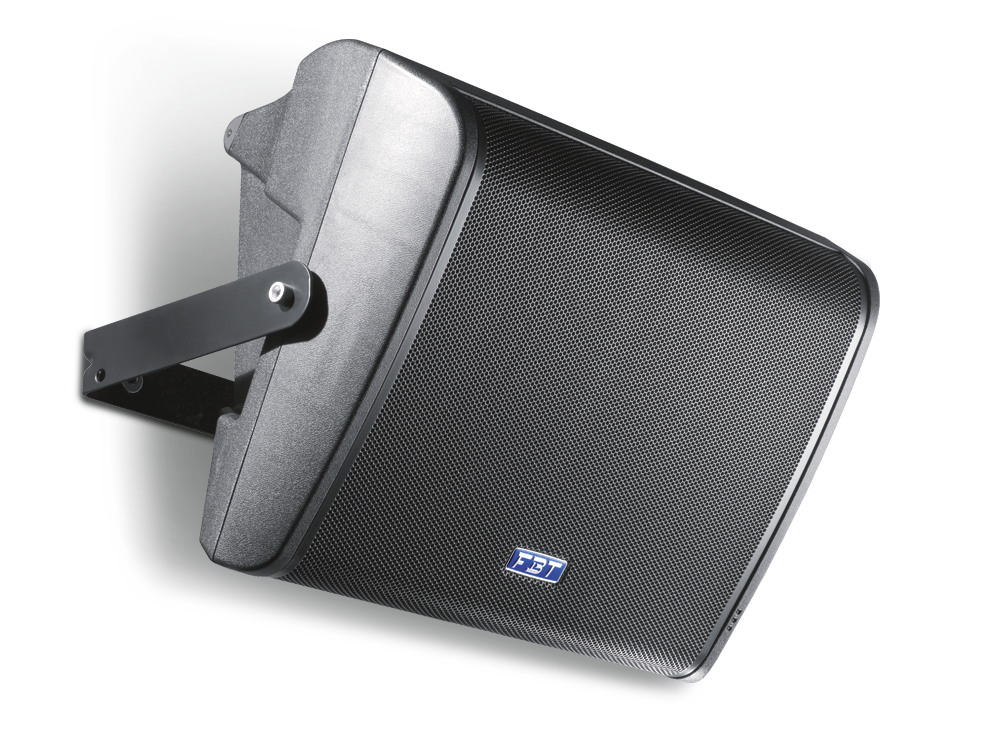

StageMaxX features two lateral M10 rigging points and wall mounting bracket for different applications (optional accessories).
3 frontal status LED indicators to control ON OFF limiter and protection state.
Three ergonomic integrated carrying handles, one frontally placed to easily drag and move the monitor on stage and the replaceable Teflon feet ensure sliding on stage with minimal wear.
The cabinet has 35° or 55° tilted front panel for an optimal listening distance for single user (35°) or for more users (55°).?
The 4 presets are:
ORIGINAL: is the typical “MaxX” sound adapted to “STAGE” application
HI-CUT / DRUM FILL: provides less mid-high for a comfortable listening in near-field at high level
LO-CUT / DOUBLE: provides less low frequency for better intelligibility and for optimal coupling in stereo configuration

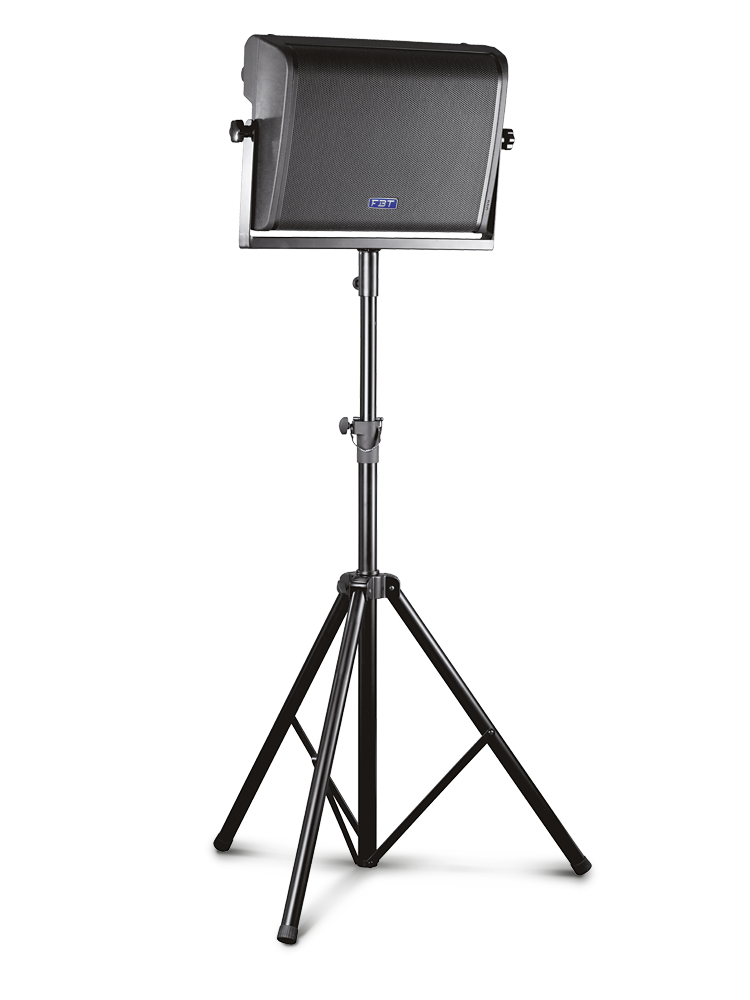

FOH: Front Of House use in suspended or pole-mount installations
400W + 100W RMS – 130dB SPL

INPUT CONNECTOR:
XLR con loop
POWER CORD:
5 m/ft
DIMENSION (WXHXD):
550 x 289 x 392 mm
WEIGHT:
13,6 kg
HIGH FREQUENCY DRIVER:
25,4 - bobina 44 inch
MAXIMUM SPL CONT/PEAK:
124 / 130 dB
DISPERSION:
90° HxV
INPUT IMPEDANCE:
22 Kohm
AC POWER REQUIREMENTS:
450 VA
BUILT-IN AMPLIFIER LF/HF:
400/100 W RMS
BUILT-IN AMPLIFIER PEAK LF/HF:
800/200 W
FREQUENCY RESPONSE:
60Hz - 20kHz -6dB
LOW FREQUENCY WOOFER:
300 - bobina 64 inch
CONFIGURATION:
2 way

Artnr. 703599

FBT SM-C 12

Cover StageMaxX 12

Artnr. 703600

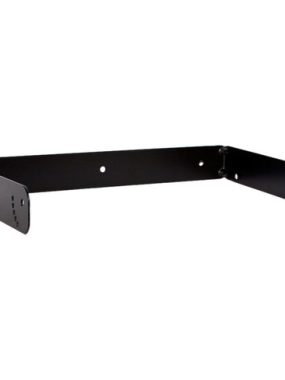

FBT SM-U 12

Wall mount StageMaxX 12 in horizontal

Artnr. 703601

FBT SM-U 12 W

Wall mount StageMaxX 12 in horizontal. White RAL7035

Artnr. 703602

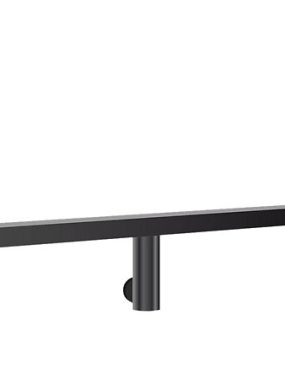

FBT SM-S 12

U adapter 35mm
