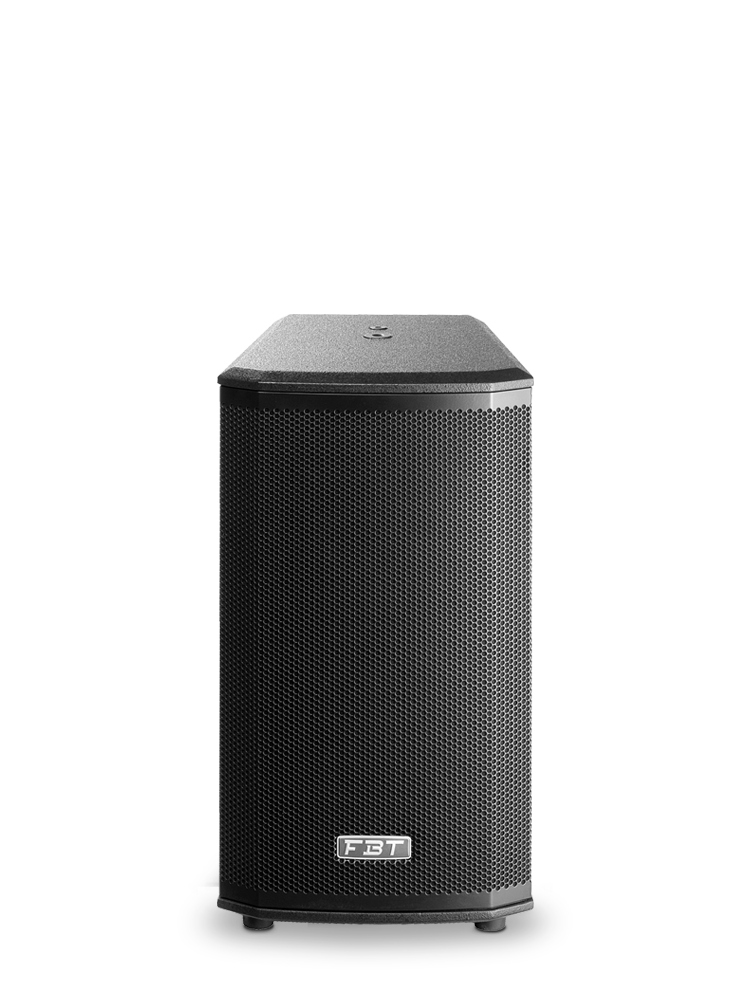

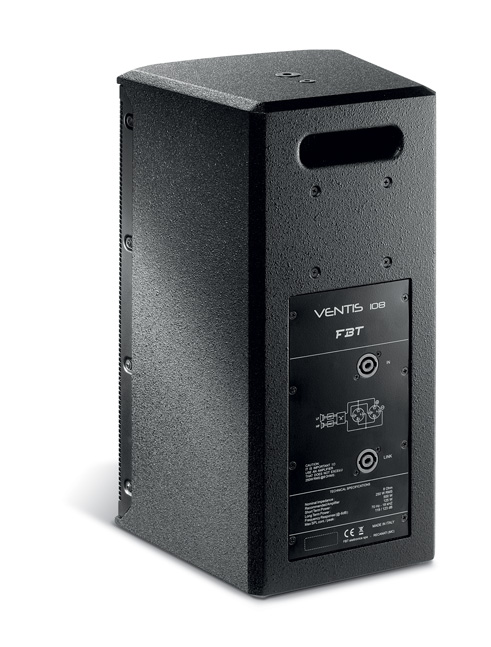

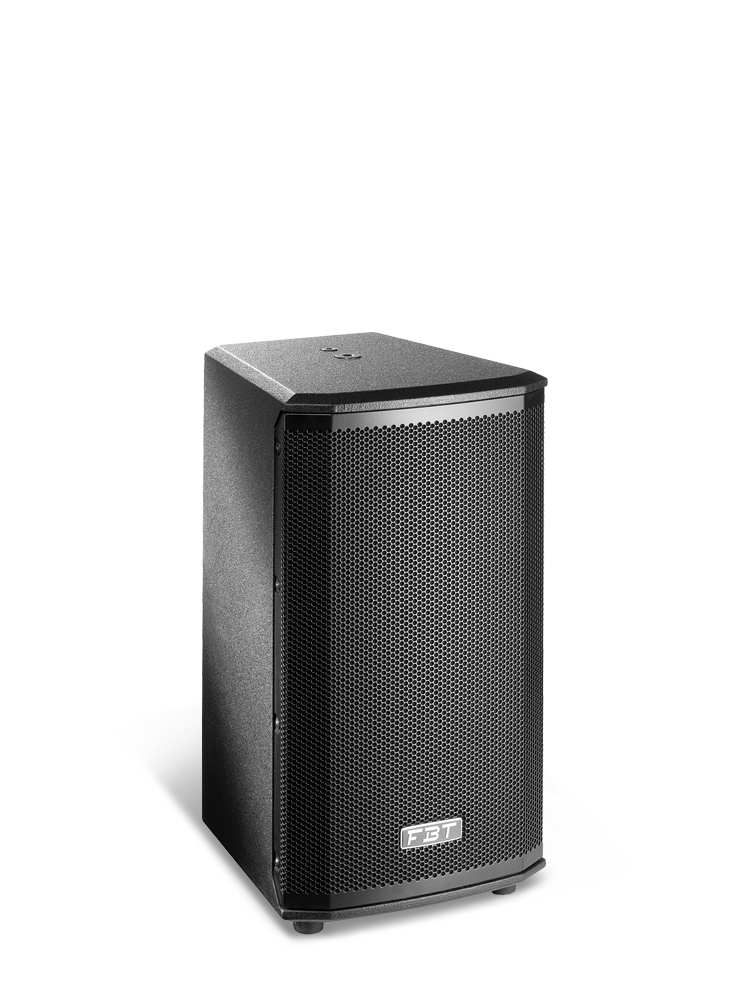

FBT VENTIS 108

2-way Passive speaker - 8" + 1" - 250Wrms

Artnr. 703511

Flera modeller tillgängliga

2-way bi-amplified, bass-reflex design
200mm (8”) LF woofer with 50mm (2”) voice coil, custom made for FBT
25mm (1”) exit throat B&C HF compression driver with 36mm (1.4”) voice coil
Frequency response from 65Hz to 20 kHz
80°H x 50°V Constant Directivity Rotatable Horn
optional wall bracket mount thread, 35mm (1 3/8”) top-hat
one integrated pocket handle?

DISPERSION:
80°x50° rotatable HxV
CROSSOVER FREQUENCY:
1.8 KHz
RECOMMENDED HP FILTER:
50Hz - 12-24db/oct
RECOMMENDED EXTERNAL FILTER:
FBT DLM 26
FREQUENCY RESPONSE:
70Hz - 18KHz -6dB
INPUT CONNECTOR:
2 x SPEAKON
LOW FREQUENCY WOOFER:
8 - 2 coil inch
DIMENSION (WXHXD):
274 x 500 x 300 mm
HIGH FREQUENCY DRIVER:
1 - 1.4 coil inch
WEIGHT:
12.3 kg
SENSITIVITY (@1W/1M):
95 dB
MAXIMUM SPL CONT/PEAK:
120/126 dB
RECOMMENDED AMPLIFIER:
250 W RMS
LONG TERM POWER:
125 W
SHORT TERM POWER:
500 W
NOMINAL IMPEDANCE:
8 ohm
CONFIGURATION:
2 way

Artnr. 703519

FBT VN-C 108

Cover for Ventis 108

FBT VN-U108

Artnr. 703526

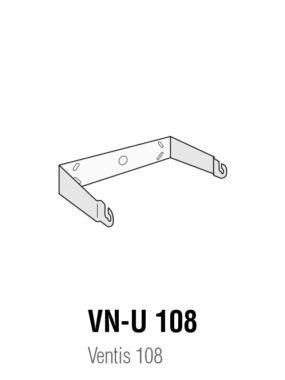

FBT VN-U 108

Wall mount Ventis 108 in horizontal

Artnr. 703529

FBT AC-W 568

Directional wall mount for Ventis 108. Black

Artnr. 703530

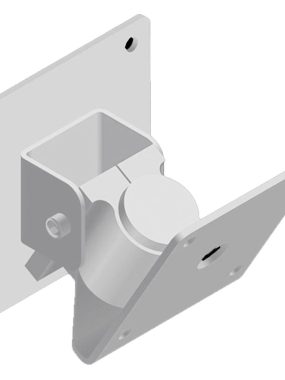

FBT AC-W 568W

Directional wall mount for Ventis 108. White
