• Ljudsystem

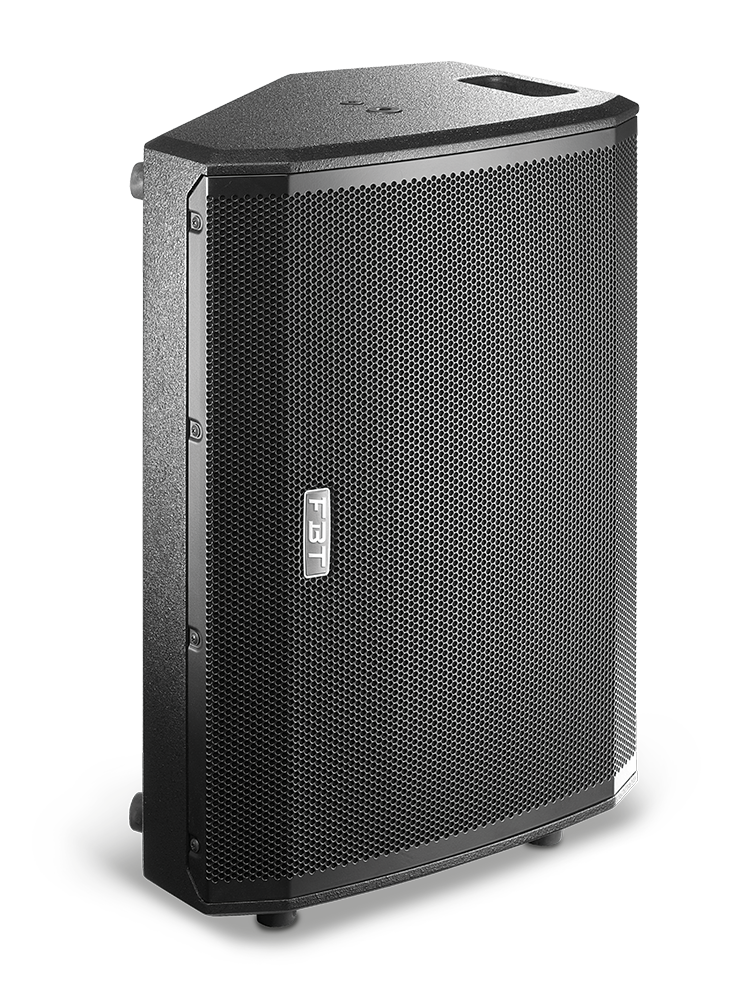

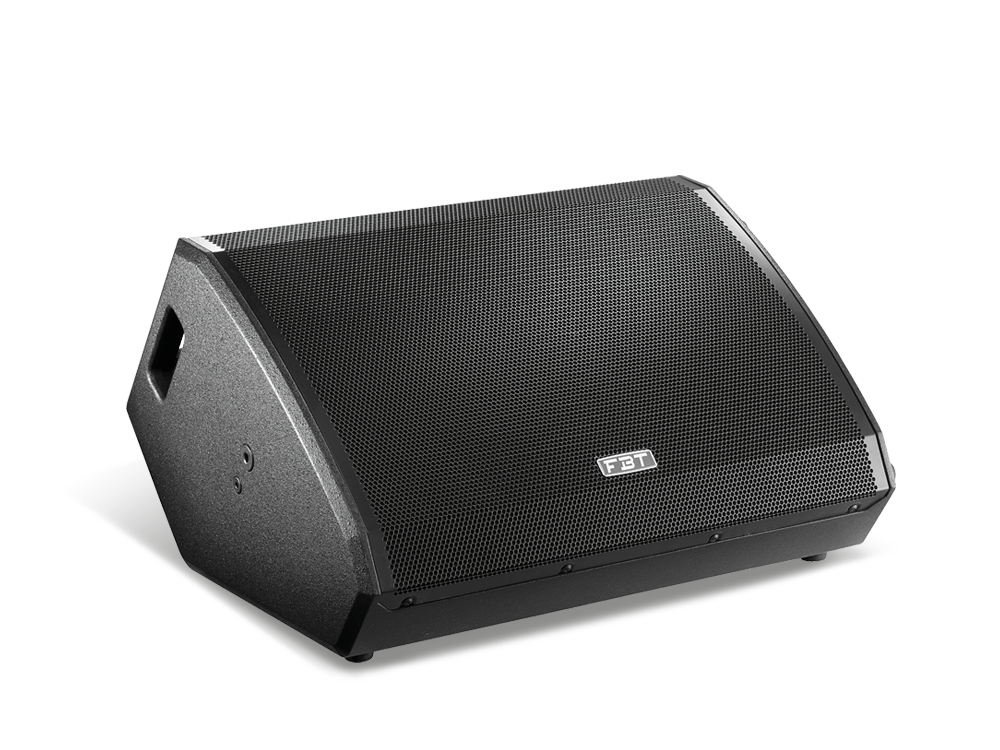

FBT VENTIS 112M

2-way Passive monitor - 12" + 1" - 500Wrms

Artnr. 703513

Flera modeller tillgängliga

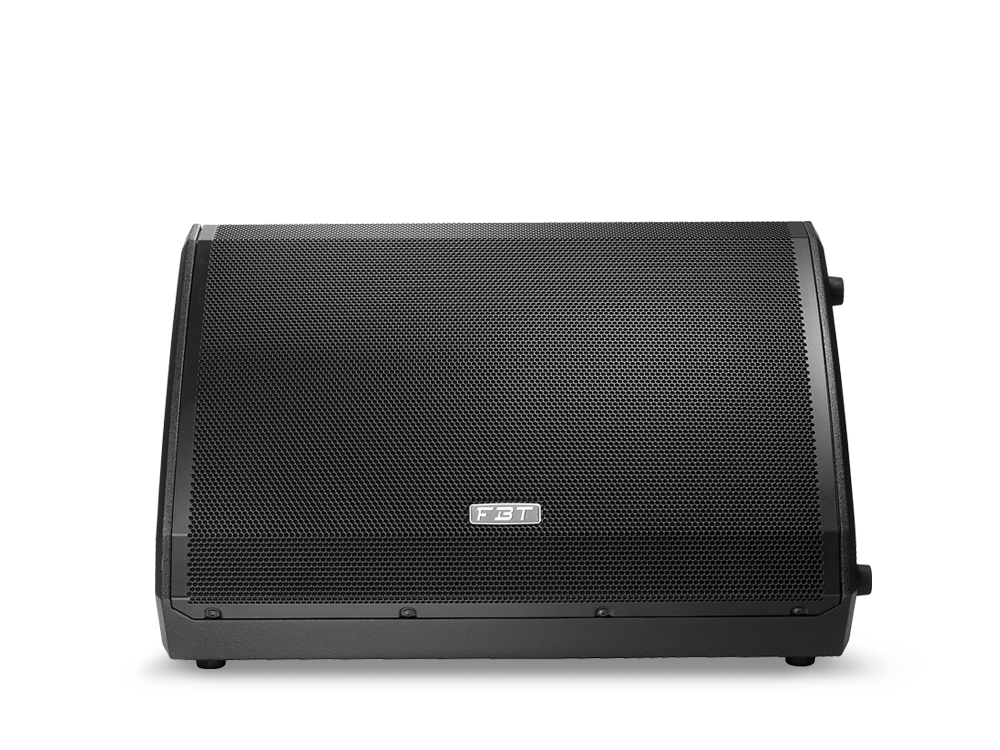

The new coaxial monitors in bass reflex Ventis 112MA and Ventis 115MA expand the active and passive range of the series. Thanks to the B&C custom transducers they are capable of a 132dB SPL. The two enclosures are built with a 15mm birch plywood and they can also be used for fixed installation and FOH thanks to 35mm pole mount sockede and to the insert for optional mounting bracket.

2-way bi-amplified, bass-reflex design
320 mm (12”) coaxial custom woofer with 64 mm (2.5’’) voice coil, 25mm (1”) exit throat B&C with 44mm (1.7”) voice coil
Frequency response from 55Hz to 20kHz
DSP with 6 factory presets (ORIG, HI-CUT/DRUM-FILL, LO-CUT/DOUBLE, FOH, VOCAL, TOURING)
90° conical dispersion
35 mm (1.38’’) stand socket, two integrated handles and optional wall mount bracket?

DISPERSION:
90° HxV
CROSSOVER FREQUENCY:
1.6 KHz
RECOMMENDED HP FILTER:
50Hz - 12-24db/oct
RECOMMENDED EXTERNAL FILTER:
FBT DLM26
FREQUENCY RESPONSE:
60Hz - 18KHz -6dB
INPUT CONNECTOR:
2 x SPEAKON
LOW FREQUENCY WOOFER:
12 - 2.5 coil inch
DIMENSION (WXHXD):
563 x 311 x 452 mm
HIGH FREQUENCY DRIVER:
1 - 1.7 coil inch
WEIGHT:
16.5 kg
SENSITIVITY (@1W/1M):
98 dB
MAXIMUM SPL CONT/PEAK:
125/129 dB
RECOMMENDED AMPLIFIER:
500 W RMS
LONG TERM POWER:
250 W
SHORT TERM POWER:
1000 W
NOMINAL IMPEDANCE:
8 ohm
CONFIGURATION:
2 way

Artnr. 703521

FBT VN-C 112M

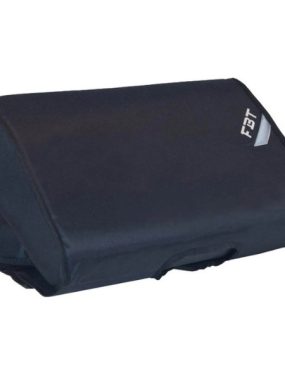

Cover for Ventis 112M

FBT VN-U112M

Artnr. 703528

FBT VN-U 112M

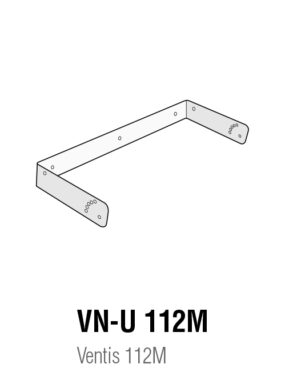

Wall mount Ventis 112M in horizontal
