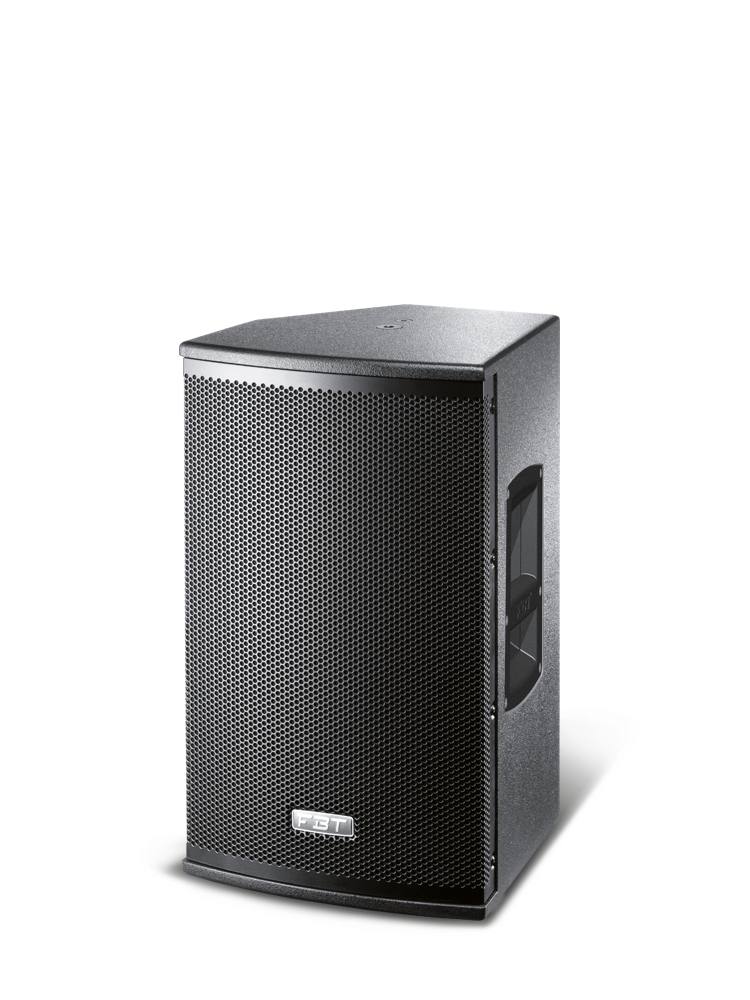

FBT X-PRO 10A

Plywood cabinet with anti-scratch coating and internal ply reinforcement
Custom FBT Speakers with high linear excursion capability and efficiency
Compression driver with 25mm (1”) throat and 35mm (1.4”) voice coil
1000W, 2-channel amplifier in Class D for LF and in Class AB for HF with a high dynamics response for a pleasant sound at high volume.
Universal switching mode power supply 100-240VAC
DSP with 4 EQ presets designed to tailor the sound of the speaker to various applications and installation environments
Advanced algorithms for filtering and equalization which alter the dynamics of the low frequency energy according to the selected preset, allowing distortion-free high SPL performance
Control panel with XLR input and link out , 6.3mm jack stereo input with volume , stereo RCA input with volume , XLR output selector coupled with stereo / mono , HP filter on / off, mic / line , DSP preset selector
Integrated mixer with two stereo channels , one channel mic / line input and an output coupled XLR mono / stereo to revive the other channel of the stereo signal to another speaker.
Handles , M10 rigging points for suspended installation, 35mm stand socket and 35° or 45° monitor taper, all included to make the speaker adaptable to any application
Constant directivity horn which can be rotated to vary the speaker’s angle of coverage
The presence of 4 presets managed by DSP allows you to modify the response of the speaker in a much more accurate way compared to standard tone controls. In addition, each preset has been designed and optimized in an anechoic chamber to deliver the best possible performance for each application.

• 1000W – 126 dB SPL
• 2-way bi-amplified bass reflex
• FBT Custom 250mm (10”) LF woofer with 50mm (2”) voice coil
• FBT 25mm (1”) throat /35mm (1.4”)voice coil HF compression driver
• 58Hz to 20KHz Frequency Response
• 80° H x 50° V constant directivity rotatable horn
• 35° monitor taper
