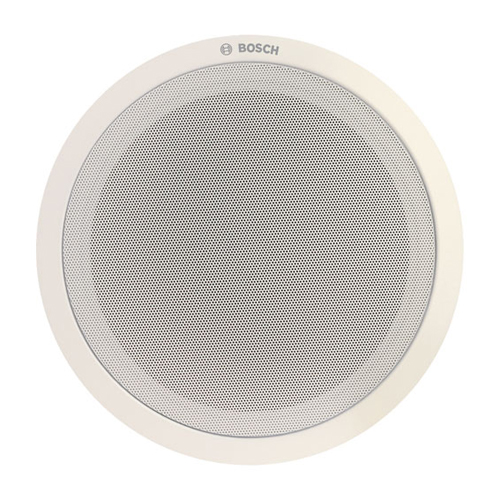

LBC3099/41 Ceiling Spk. 36/24W
Metall Grille, Round
Artnr. 752154
LBC 3099/41 Ceiling Loudspeaker
24 W, dual-cone loudspeaker. A 100 V matching transformer is mounted on the back of the frame.
• Excellent speech and music reproduction
• High sound pressure level
• Ideal for high-ceiling applications
• Flush mounted in ceilings
• Clamp mounting
The LBC 3099/41 is a flush-mounting ceiling loudspeaker for applications where extra power is required, such as rooms with high ceilings. It delivers a high sound pressure level and has a wide frequency range to ensure excellent speech intelligibility and good quality music reproduction. It is used in applications like shops, department stores, schools, offices, sports halls, hotels and restaurants.
Accessories LBC 3082/00 Fire Dome
Maximum power
36 W
Rated power (PHC)
24 / 12 / 6 W
Sound pressure levelat 24 W / 1 W (1 kHz, 1 m)
106 dB / 92 dB (SPL)
Sound pressure levelat 24 W / 1 W (4 kHz, 1 m)
107 dB / 93 dB (SPL)
Effective frequency range (-10 dB)
60 Hz to 18 kHz
Opening angle at 1 kHz/4 kHz (-6 dB)
160° / 60°
Rated voltage
100 V
Rated impedance
417 ohm
Connector
3-pole screw terminal block
Color
White (RAL 9010)
Diameter
265 mm
Maximum depth
89 mm
Mounting cut-out
210 mm
Speaker diameter
203.2 mm
Weight
1.8 kg
Mått
Ø 265 mm x 89 mm
Vikt
1,8 kg
