FBT VENTIS 206A

2-way Bass reflex Active speaker - 2x6,5" + 1" - 700Wrms+200Wrms

Artnr. 703503

Flera modeller tillgängliga

The FBT VENTIS 206A has been designed to meet the highest standards in both performance and aesthetic appeal. The FBT VENTIS 206A can be deployed as a front fill, an under-balcony fill, as a main providing pristine speech intelligibility or simply as the full-range companion of a subwoofer. The FBTVENTIS 206A incorporating 2 x 6.5″ LF woofers with 1.5″ voice coil, custom made for FBT and 1″ exit throat B&C HF compression driver with 1 .4″ voice coil; a fully rotatable constant directivity horn ensure accurate coverage (70° H x 50° V). With a frequency range from 70Hz to 20kHz the FBT VENT IS 206A speaker provide high fidelity sound for both speech and music applications with a maximum SPL of 131 dB. Low frequencies are driven by a highly efficient 700W RMS (full bridge) Class D topology, operating with extremely low THD; for the HF stage, a 200 W RMS performance is delivered via a meticulously crafted Class H/AB design. DSP on-board is both user friendly and powerful; a total of 6 pre-optimised settings are available, plus 2 further slots for users to form their own designs, using 5 parametric equalizers per slot. Constructed in 0,47″ birch plywood, the FBT VENTIS 206A has an integrated rear handle. The optional mounting bracket allow the FBT VENT IS 206Aspeaker to be surface mounted on walls or ceilings. A standard 1.38″ I 35mm speaker stand socket allows FBT VENT IS 206A to be mounted on speaker stands.

  • 2-way bi-amplified bass reflex design
  • Biamped: 700W RMS/LF and 200W RMS/HF
  • DSP with graphic display
  • 0,47″ birch plywood scratch resistant enclosure
  • High efficiency switch mode power supply
  • Control panel features balanced XLR/Jack input, XLR link out, 2 x volume, RCA stereo input, DSP with rotative encoder and push
Dispersion
70° x 50° rotatable HxV
Input Impedance
640 Kohm
Input Connectors
XLR with loop, RCA ST
Frequency Response
70Hz - 20kHz (@-6dB)
Maximum SPL cont/peak
124/131dB
AC Power Requirement
600VA
System Type
2Way
Low Frequency Woofer
2 x 6.5" / 1.5" coil
High Frequency Driver
1" / 1,4" coil
Dimensions
190 X 545 X 260
Weight
12 kg

Artnr. 703517

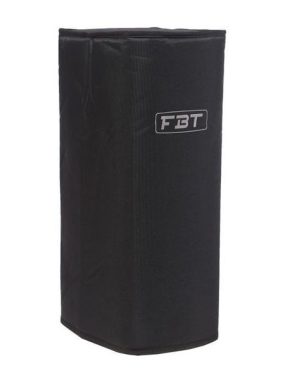

FBT VN-C 206

Cover for Ventis 206

FBT VN-U206

Artnr. 703525

FBT VN-U 206

Wall mount Ventis 206 in horizontal
