FBT ARCHON 108
2-way Passive speaker - 8" + 1,5" - 350Wrms - black/ whit
Artnr. 703839

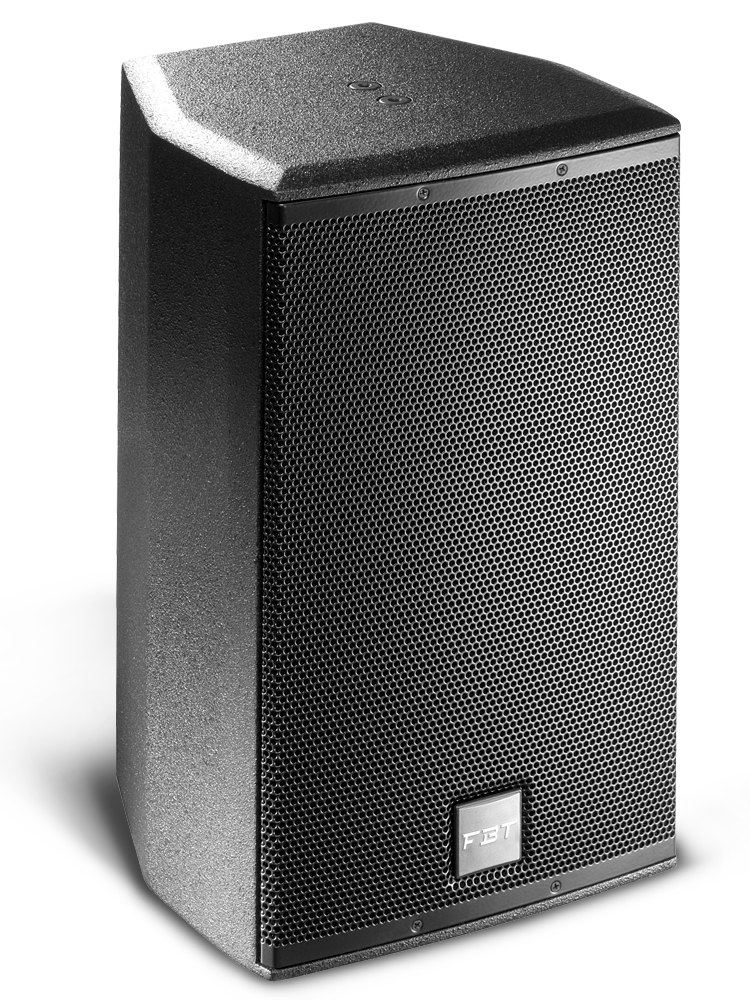

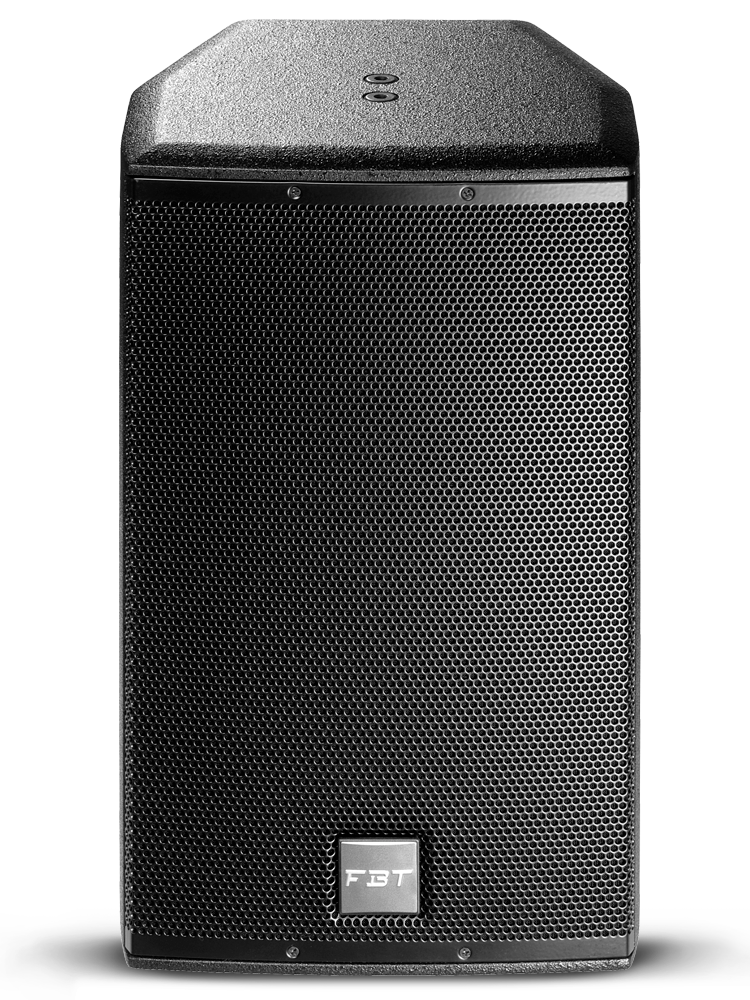

The Archon 108 is a 8″ and 1″ domed full-range passive speaker designed to provide ample bandwidth and high SPL for an accurate sound reproduction in the installed sound market perfect for modern indoor spaces.
- 1 x 8” (1.5” VC) custom made LF woofer with rubber surround.
- 1 x 1.5” HF high-end dome tweeter.
- 8 x M5 threaded rigging points.
- 2-way, passive sound reinforcement systems.
- 12mm (0.47”) baltic birch plywood cabinets.
- Custom designed LF woofers, made in Italy.
- Custom designed HF dome tweeter, Made in Italy.
- Crossover networks equipped with 4 x Euroblock speaker terminals; factory preset for optimal line transformer installation.
- Multiple M5 threaded rigging points.
- Acoustically transparent steel grille and antidust protection cloth.
- New FBT rotatable logo badge following vertical or horizontal installation.
- Optional mounting hardware.
- Optional line transformer 100W.
DISPERSION:
90° HxV
CROSSOVER FREQUENCY:
2 KHz
RECOMMENDED HP FILTER:
40hz - 25dboct
FREQUENCY RESPONSE:
55Hz - 22KHz -6dB
INPUT CONNECTOR:
4 x Euroblock
LOW FREQUENCY WOOFER:
8 - 1.5 coil inch
DIMENSION (WXHXD):
248 x 411 x 248 mm
HIGH FREQUENCY DRIVER:
1.5 - 1.5 coil dome inch
WEIGHT:
6.5 kg
SENSITIVITY (@1W/1M):
92.5 dB
MAXIMUM SPL CONT/PEAK:
118/121 dB
RECOMMENDED AMPLIFIER:
350 W RMS
LONG TERM POWER:
175 W
SHORT TERM POWER:
700 W
NOMINAL IMPEDANCE:
8 ohm
CONFIGURATION:
2 way
