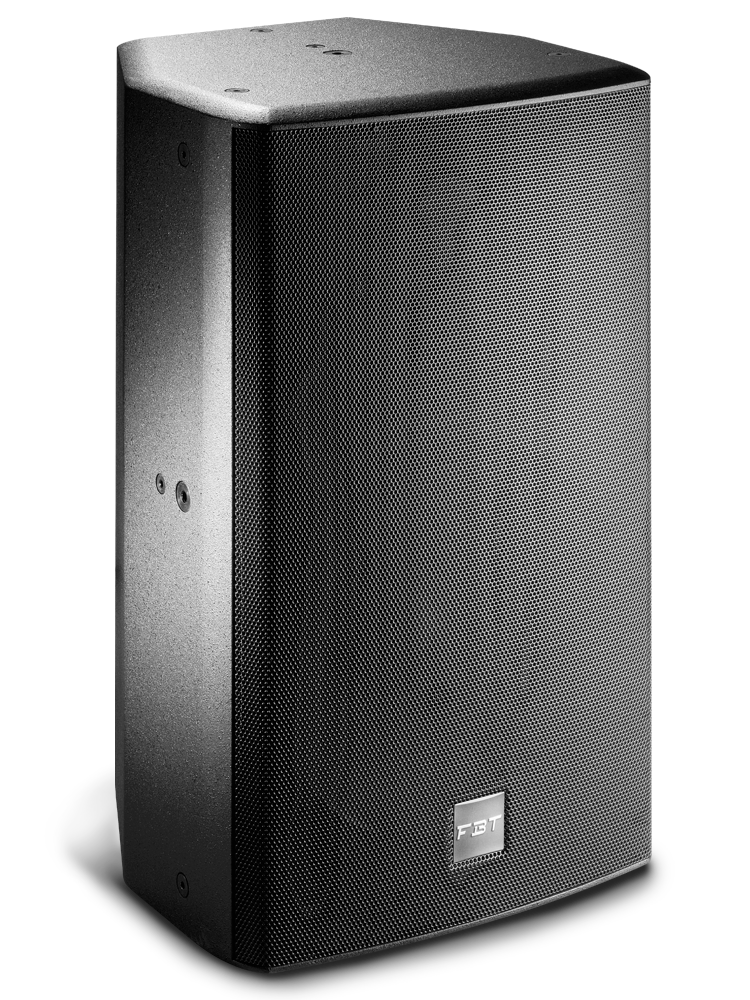

FBT ARCHON 115

2-way Passive speaker - 15" + 2" - 2" 60°x 40° rot. Horn

Artnr. 703836

The Archon 115 is B&C loaded 15″ woofer and 2″ Compression driver Bi-ampable full-range passive speaker designed to provide ample bandwidth and high SPL for an accurate sound reproduction in the installed sound market perfect for modern indoor spaces.

  • Stylish architectural cabinet design
  • Acoustically transparent steel grilles with protection cloth
  • High SPL, fast responding dynamics, excellent intelligibility, wide band, extremely low distortion
  • Baltic birch plywood cabinets available in black or white extra texture paint
  • Choice of different RAL paint colours on order
  • Choice of different paint finish: glossy, matt, textured and more, on order
  • Custom designed low frequency woofers, made in Italy
  • Custom designed high frequency compression drivers, made in Italy
  • Rotatable horns for optimal horizontal or vertical sound dispersion angle
  • Selectable bi-amp/full range crossover network
  • Full suspension possibilities through multiple M10 / M5 threaded rigging points and a wide range of mounting hardware
  • Possibility to install line transformers for 100V/70V applications
  • Possibility to order weatherproof versions for outdoor use
  • Possibility to extend low frequencies performance through dedicated and compact subwoofers (Archon 208S, Archon 215S)
DISPERSION:
60°x40° HxV
CROSSOVER FREQUENCY:
1.3 passive or active Bi-Amp KHz
RECOMMENDED HP FILTER:
35Hz - 24dboct
RECOMMENDED EXTERNAL FILTER:
Digital management with presents
FREQUENCY RESPONSE:
48Hz - 18KHz -6dB
INPUT CONNECTOR:
2 x Speakon NL4 in & thru 4x Euroblock
LOW FREQUENCY WOOFER:
15-3 coil inch
DIMENSION (WXHXD):
435 x 740 x 421 mm
HIGH FREQUENCY DRIVER:
2 - 2.5 coil inch
WEIGHT:
29 kg
SENSITIVITY (@1W/1M):
100 dB
MAXIMUM SPL CONT/PEAK:
130/134 dB
RECOMMENDED AMPLIFIER:
1000 W RMS
LONG TERM POWER:
500 W
SHORT TERM POWER:
2000 W
NOMINAL IMPEDANCE:
8 ohm
CONFIGURATION:
2 way

Artnr. 703696

FBT AX 3000

2 Ch. Power Amp - 2x1500Wrms (4ohm) - 3000Wrms (8ohm bridge)

Artnr. 703856

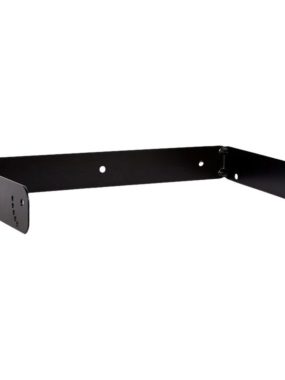

FBT AC-U 115H

Wall metal stand to mount ARCHON 115 in horizontal

Artnr. 703693

FBT DLM-26

2 In x 6 Out Digital Loudspeaker Management processor
