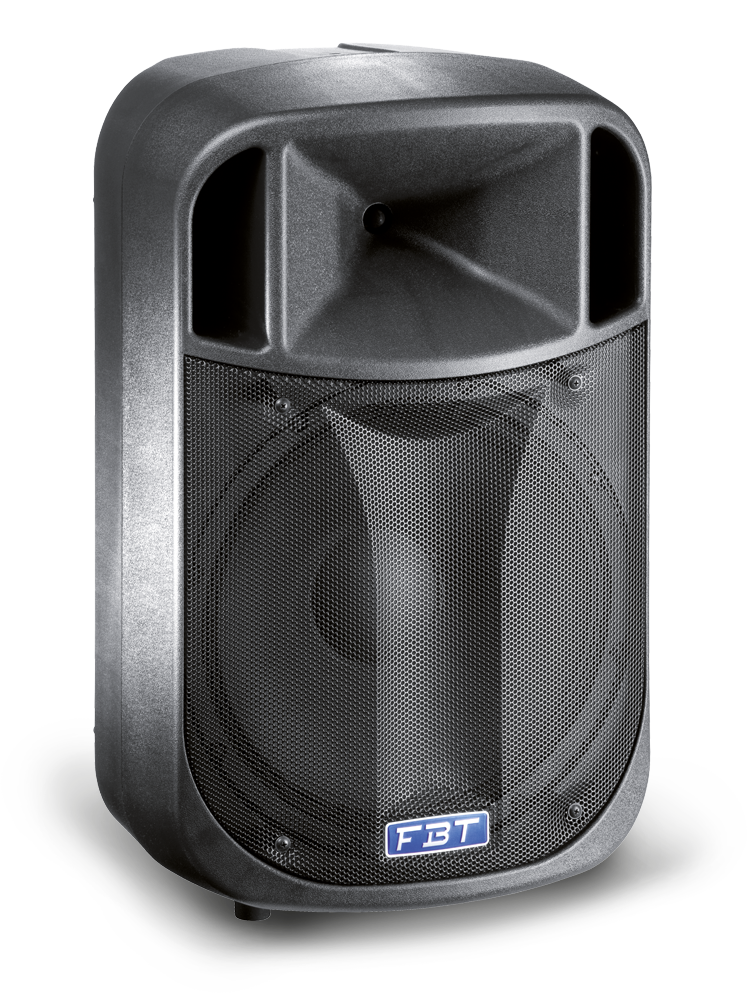

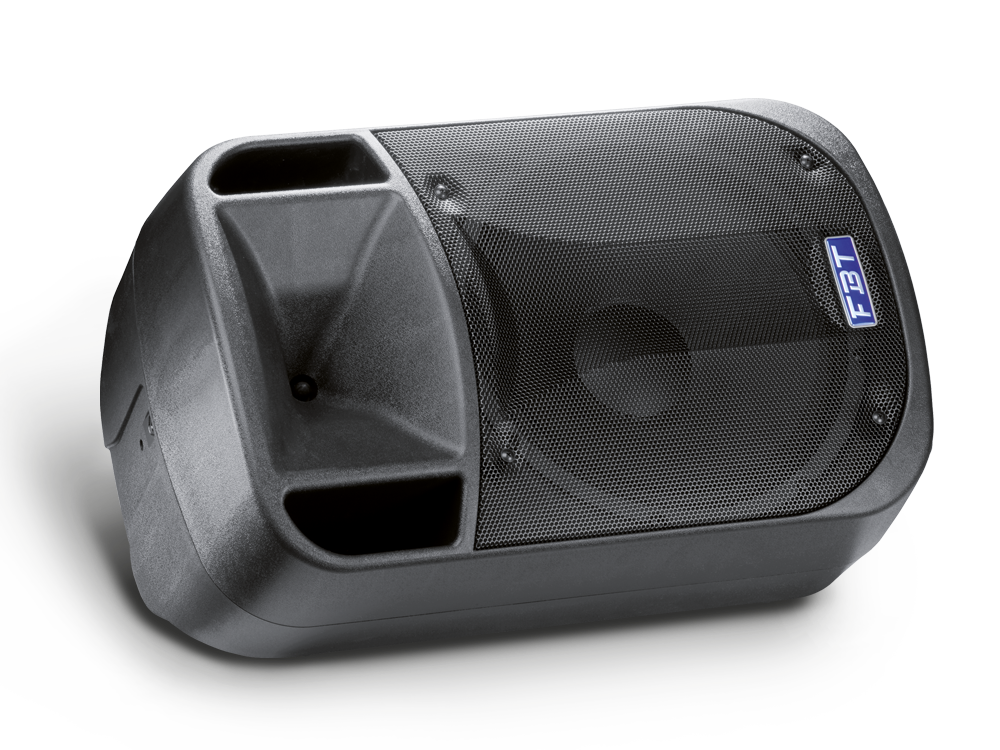

Ljudsystem

FBT J 15A

2-way Active speaker - 15" + 1" - 350Wrms+100Wrms

Artnr. 703643

Flera modeller tillgängliga

Beskrivning

Processed Active Monitor

350W+ 100W RMS – 129dB SPL
380mm (15’’) custom woofer with improved efficiency and linearity
350Wrms class D amplifier for LF and 100Wrms for HF.
High efficiency switch mode power supply
On-board Digital Signal processing with dynamic equalizations and protections for high SPL and high reliability.
4 DSP preset for maximum acoustical flexibility

2-way bi-amplified system in Bass-Reflex2-way bi-amplified system in Bass-Reflex
Polypropylene enclosure with integrated handle except J 5A/5
2 x M10 anchoring points (15A, 12A, DJ 15A), 2 x M6 suspension points (8A, 5A)
25mm (1”) HF custom AF compression driver (15A, 12A, 8A, DJ 15A)
90°H x 60°V constant directivity horn (15A, 12A, 8A, DJ 15A

Specifikationer

DIMENSION (WXHXD):

410 x 663 x 387 mm

WEIGHT:

14 kg

MAXIMUM SPL CONT/PEAK:

125 / 129 dB

DISPERSION:

90° x 60° HxV

INPUT IMPEDANCE:

22 Kohm

INPUT CONNECTOR:

XLR-jack with loop

POWER CORD:

5 / 16.4 m/ft

BUILT-IN AMPLIFIER LF/HF:

350 / 100 W RMS

FREQUENCY RESPONSE:

48Hz - 20KHz -6dB

LOW FREQUENCY WOOFER:

15 - 2 coil inch

HIGH FREQUENCY DRIVER:

1 - 1 coil inch

CONFIGURATION:

2 way

Artnr. 703658

Cover J 15/12

Artnr. 703661

FBT BOX 112

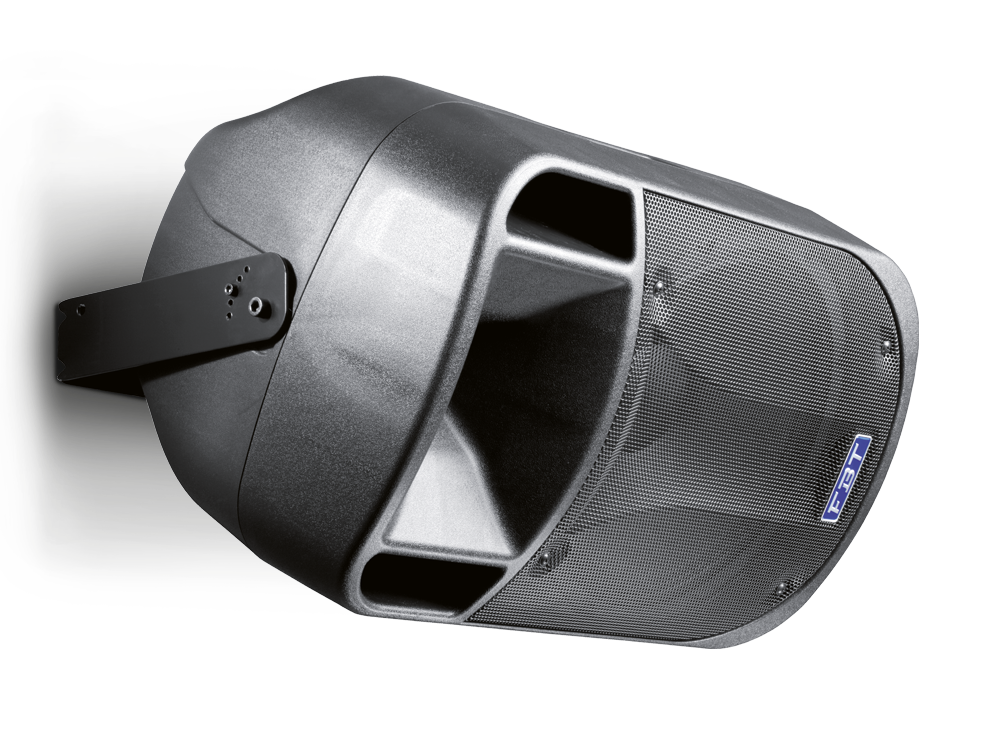

Wall mount J 15/12 in horizontal

FBT J 15A
