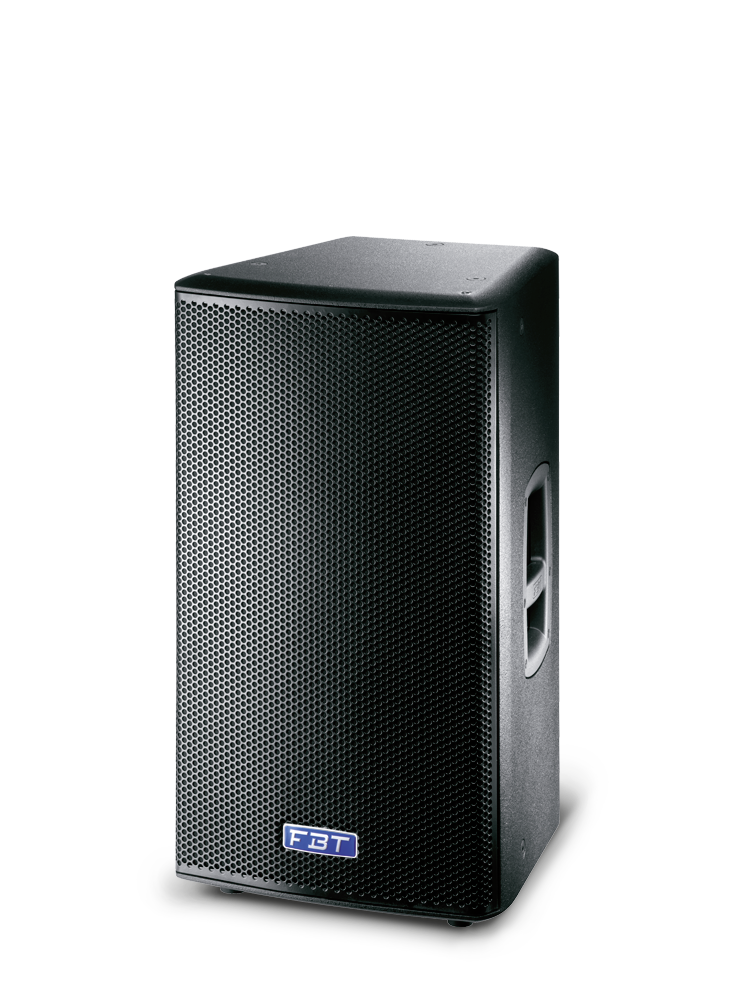

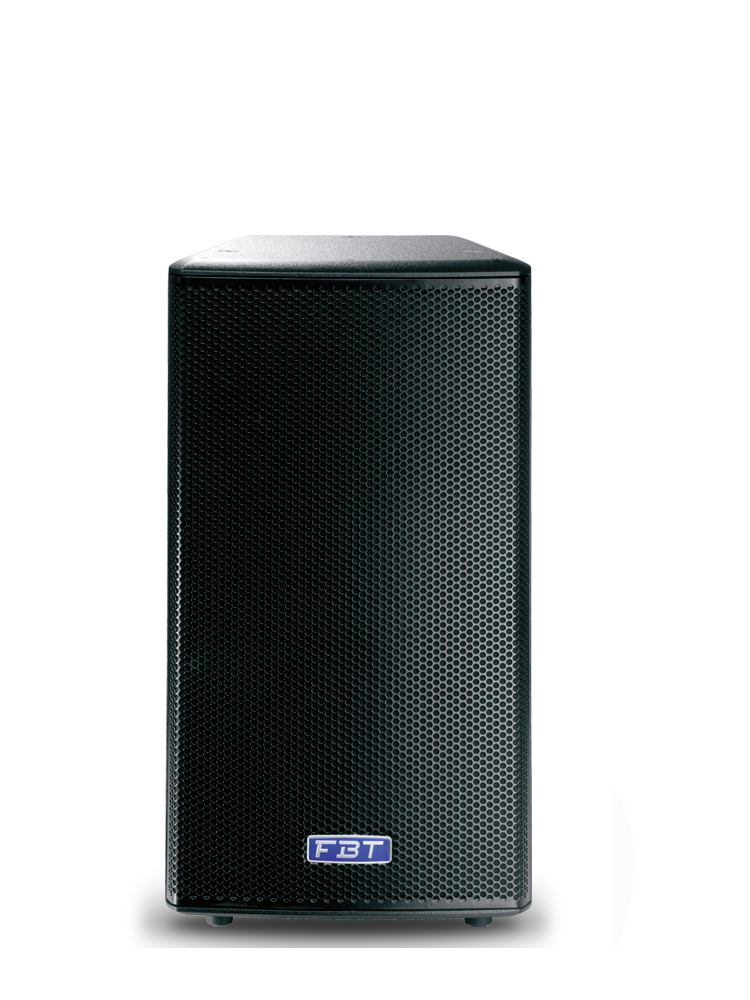

FBT MITUS 114A

2-way Active speaker - 14" + 1,4" - 600Wrms+300Wrms

Artnr. 703829

The MITUS 114A is an Active cabinet featuring a B&C 14″ Low Frequency with a 1.4″ exit 2.5″ VC B&C rotatable horn driven by a 600 Watt + 300 Watt amplifer capable of delivering up to 135.5 dB SPL. Housed in 0.59″ Baltic Birch Ply wood and covered in our tour grade black finish

  • 360 mm (14”) B&C neodymium magnet woofer with 75 mm (3”) voice coil.
  • 36 mm (1.4”) exit B&C neodymium magnet HF driver with 64 mm (2.5’’) voice coil.
  • Class D built-in amplifiers, 600WRMS to the LF and 300WRMS to the HF, switch mode power supply.
  • Frequency response from 46Hz to 20KHz.
  • 70°H x 50°V rotatable HF horn.
  • 35 mm (1.38’’) speaker stand socket.
  • Very lightweight, only 24.9 kg / 54.8 lb.
  • 2-way, bi-amplified, bass-reflex design.
  • Switch mode power supply.
  • DSP with 8 EQ presets.
  • Birch plywood enclosure, scratch resistant black paint finish.
  • Control panel with XLR input and link, volume, presets, HP filter, ground-lift.
  • 12 x M10 fl y points and two FBT design aluminum handles.
  • Ideal for live sound reinforcement applications and permanent installations.
DIMENSION (WXHXD):
380 x 705 x 380 mm
WEIGHT:
24.9 kg
MAXIMUM SPL CONT/PEAK:
127.5/135.5 dB
DISPERSION:
70°x50° HxV
INPUT IMPEDANCE:
22 Kohm
INPUT CONNECTOR:
XLR with loop
POWER CORD:
5 m/ft
BUILT-IN AMPLIFIER LF/HF:
600/300 W RMS
FREQUENCY RESPONSE:
46Hz - 20KHz -6dB
LOW FREQUENCY WOOFER:
1x14 - 3 coil neodymium inch
HIGH FREQUENCY DRIVER:
1x1.4 - 2.5 coil inch
CONFIGURATION:
2 way

Artnr. 703751

FBT VHA-C 118S

VHA 118 cover

Artnr. 703712

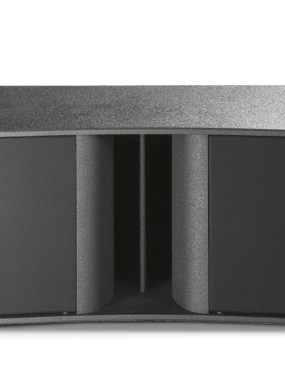

FBT MYRA 218S

"Reflex Loaded Active Subwoofer - 2x18" - 3000Wrms

Artnr. 703757

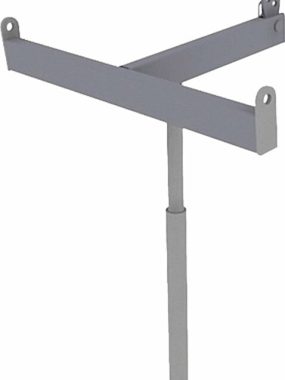

FBT MT-S 206
