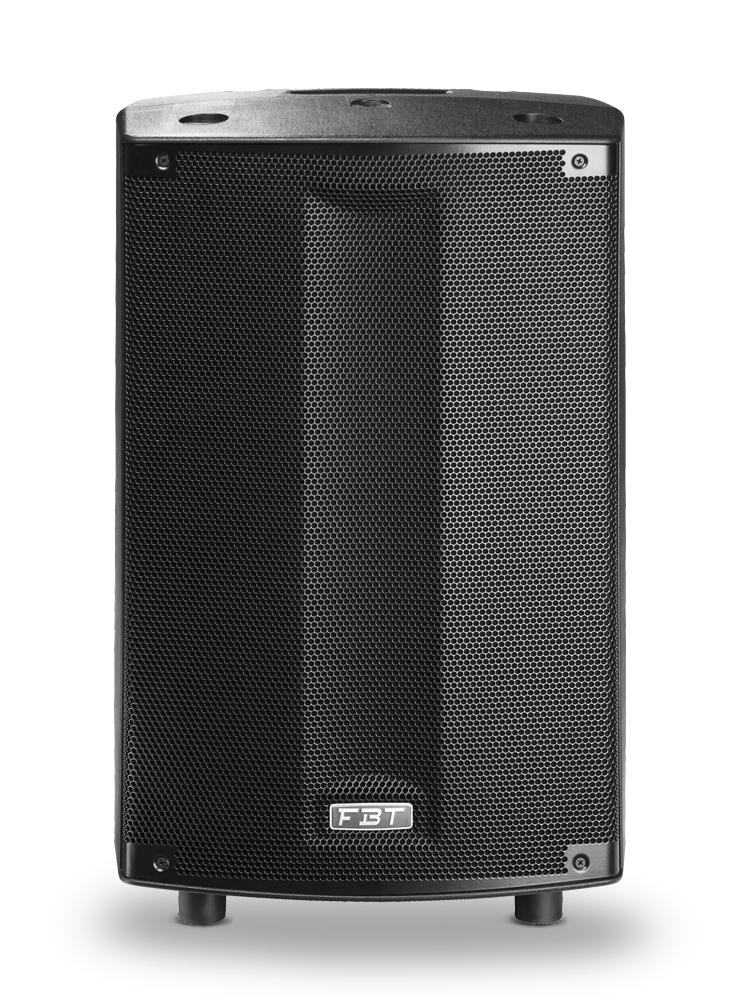

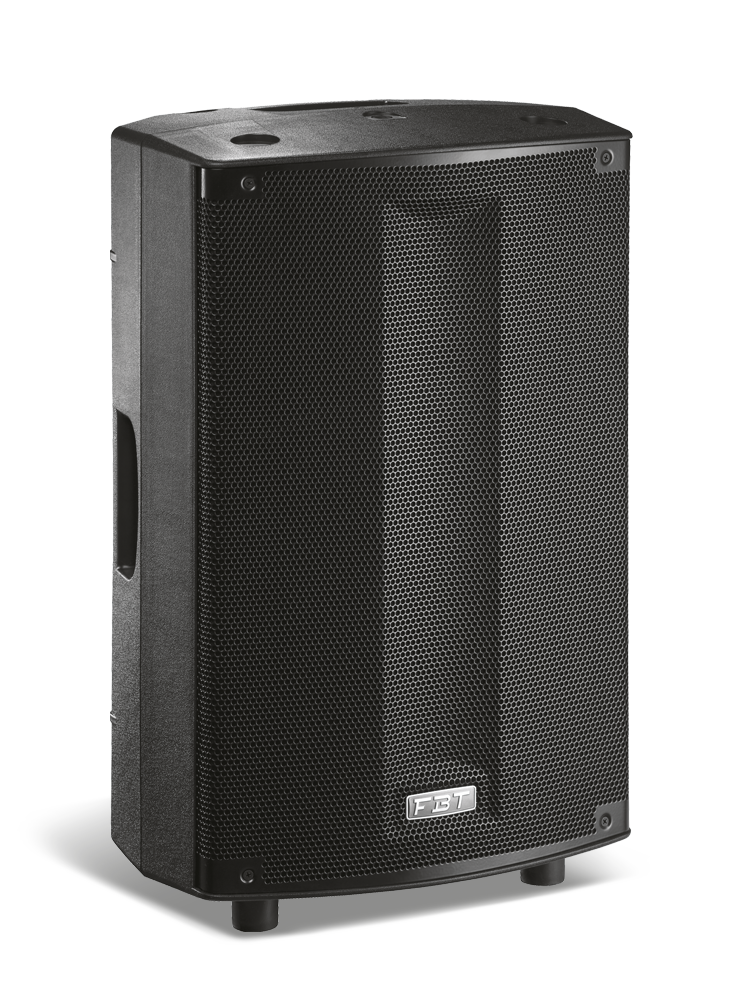

FBT PROMaxX 114A

2-way Bass reflex Active speaker - 14" + 1,4" - 700Wrms+200Wrms

Artnr. 703616

Flera modeller tillgängliga

PROMAXX offers 6 presets to cater for a broad variety of uses, each crafted by FBT engineers. Employing powerful DSP, the presets ensure reliability while eliminating distortion.
ORIGINAL / LIVE The renowned, smooth FBT sound
VOCAL A special EQ setting to maximise speech intelligibility
DJ Designed to keep the energy high and your audience dancing
TOURING The reliability and the roar of the industry’s most popular touring systems
LOUDNESS The ultimate preset for listening at a medium or low volume
WARM A special setting to emphasise full-bodied, low-mid frequencies.
Common features:
2-way, bi-amplified, bass reflex design cabinet
Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
Digital signal processor with graphic display
Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
90°H x 60°V constant directivity horn
Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles

DIMENSION (WXHXD):
402 x 644 x 345 mm
WEIGHT:
17.5 kg
MAXIMUM SPL CONT/PEAK:
127.5 / 135.5 dB
DISPERSION:
90° x 60° HxV
INPUT IMPEDANCE:
22 Kohm
INPUT CONNECTOR:
XLR with loop, RCA ST
POWER CORD:
5/16.4 m/ft
BUILT-IN AMPLIFIER LF/HF:
700/200 W RMS
FREQUENCY RESPONSE:
45Hz-20KHz -6dB
LOW FREQUENCY WOOFER:
14 - 3 coil neodymium inch
HIGH FREQUENCY DRIVER:
1.4 - 2.5 coil inch
CONFIGURATION:
2 way

Artnr. 703623

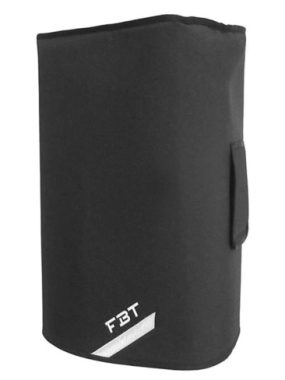

FBT V 64

Cover PROMaxX and JMaxX 114, 112

Artnr. 703627

FBT BOX 128

Wall mount PROMaxX and JMaxX 114, 112 in horizontal
