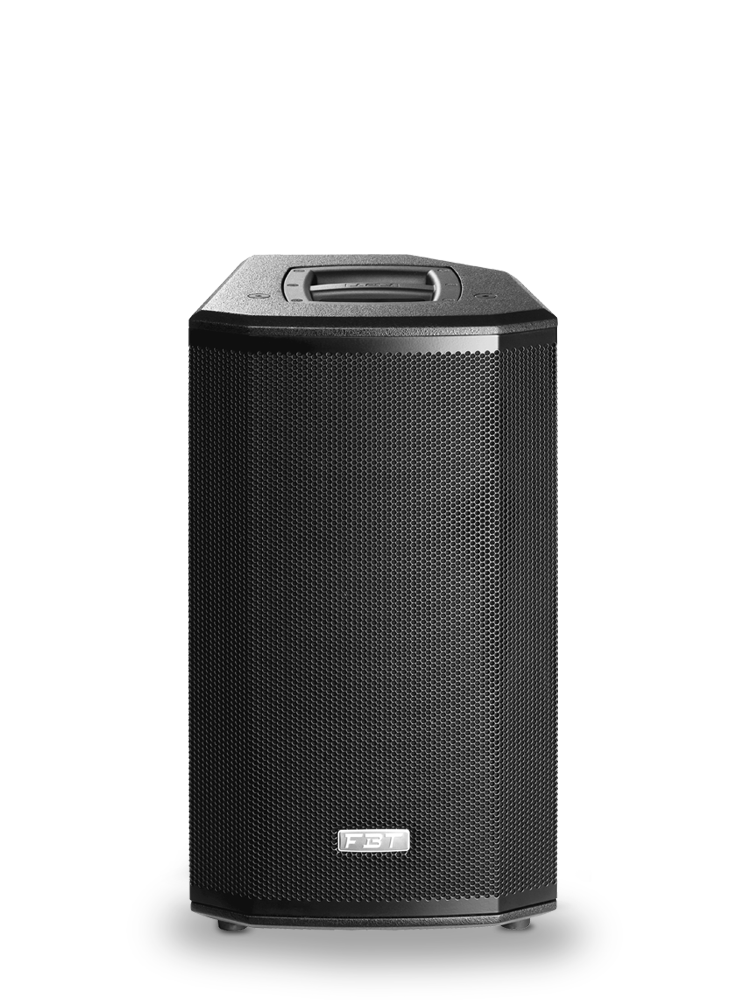

FBT VENTIS 110

2-way Passive speaker - 10" + 1" - 300Wrms

Artnr. 703509

Flera modeller tillgängliga

The FBT VENTIS range offers powerful DSP with 6 versatile presets. Crafted by expert FBT engineers, the presets offer a performance for every requirement.
ORIGINAL / LIVE The renowned, smooth FBT sound
VOCAL A special EQ setting to maximise speech intelligibility
DJ Designed to keep the energy high and your audience dancing
TOURING The reliability and the roar of the industry’s most popular touring systems
LOUDNESS The ultimate preset for listening at a medium or low volume
WARM A special setting to emphasise full-bodied, low-mid frequencies.

2-way, bi-amplified, bass reflex design
Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
Digital Signal Processor with graphic display
15 mm (0.59”) birch plywood scratch resistant enclosure and internal bracing
High efficiency switch mode power supply
Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
250mm (10”) LF woofer with 50mm (2”) voice coil, custom made for FBT
25mm (1”) exit throat B&C HF compression driver with 36mm (1.4”) voice coil
Frequency response from 58Hz to 20 kHz
80°H x 50°V Constant Directivity Rotatable Horn
6 x M10 suspension points, optional wall bracket mount thread, 35mm (1 3/8”) top-hat
Speaker stand socket, one aluminium handle
45° monitor taper

DISPERSION:
80° x 50° rotatable HxV
CROSSOVER FREQUENCY:
1.8 KHz
RECOMMENDED HP FILTER:
HP 50Hz - 12-24dB/oct
FREQUENCY RESPONSE:
60Hz - 18KHz -6dB
INPUT CONNECTOR:
2 x SPEAKON
LOW FREQUENCY WOOFER:
10 - 2 coil inch
DIMENSION (WXHXD):
329 x 575 x 325 mm
HIGH FREQUENCY DRIVER:
1 - 1.4 coil inch
WEIGHT:
15.1 kg
SENSITIVITY (@1W/1M):
97 dB
MAXIMUM SPL CONT/PEAK:
122/127 dB
RECOMMENDED AMPLIFIER:
300 W RMS
LONG TERM POWER:
150 W
SHORT TERM POWER:
600 W
NOMINAL IMPEDANCE:
8 ohm
CONFIGURATION:
2 way

Artnr. 703516

FBT VN-C 110

Cover for Ventis 110

FBT VN-U110

Artnr. 703524

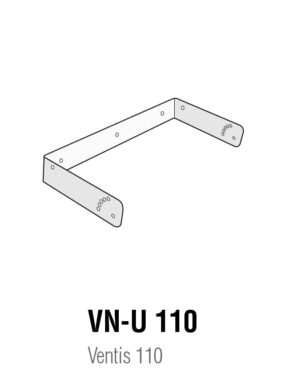

FBT VN-U 110

Wall mount Ventis 110 in horizontal
