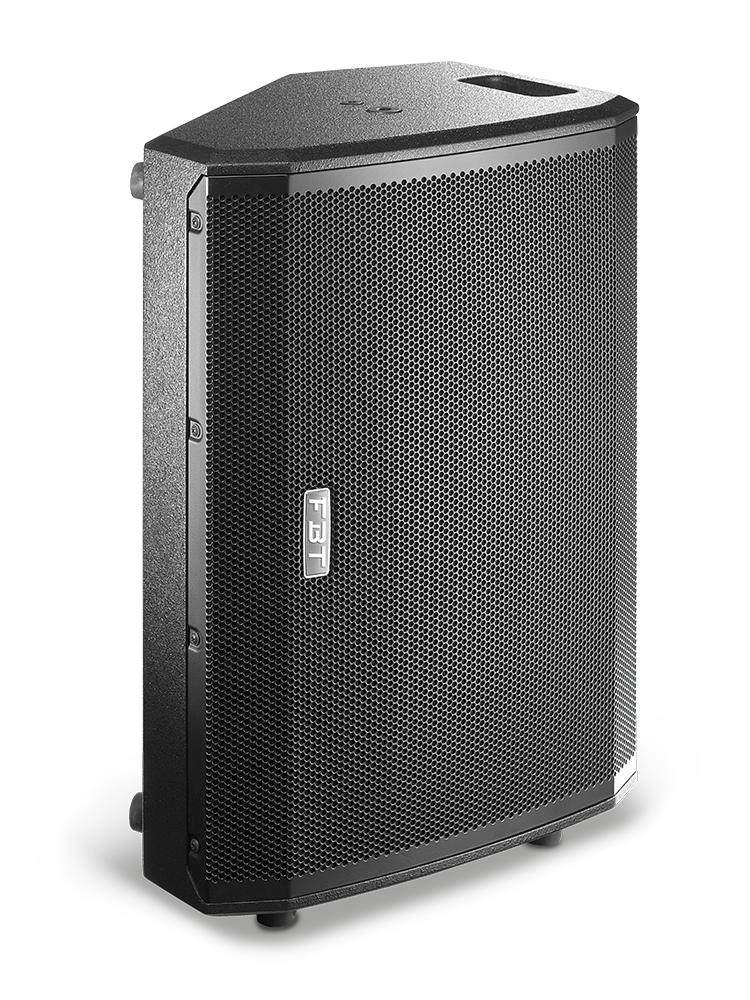

FBT VENTIS 115M
2-way Passive monitor - 15" + 1" - 500Wrms
Artnr. 703512
Flera modeller tillgängliga
2-way bi-amplified, bass-reflex design
380 mm (15”) coaxial custom woofer with 64 mm (2.5’’) voice coil, 25mm (1”) exit throat B&C with 44mm (1.7”) voice coil
Frequency response from 50Hz to 20kHz
DSP with 6 factory presets (ORIG, HI-CUT/ DRUM-FILL, LO-CUT/TWIN, FOH, VOCAL, TOURING)
90° conical dispersion
35 mm (1.38’’) stand socket, two integrated handles and optional wall mount bracket
DISPERSION:
90° HxV
CROSSOVER FREQUENCY:
1.4 KHz
RECOMMENDED HP FILTER:
50Hz - 12-24db/oct
RECOMMENDED EXTERNAL FILTER:
FBT DLM 26
FREQUENCY RESPONSE:
55Hz - 20KHz -6dB
INPUT CONNECTOR:
2 x SPEAKON
LOW FREQUENCY WOOFER:
15 - 2.5 coil inch
DIMENSION (WXHXD):
632 x 354 x 516 mm
HIGH FREQUENCY DRIVER:
1 - 1.7 coil inch
WEIGHT:
20.3 kg
SENSITIVITY (@1W/1M):
99 dB
MAXIMUM SPL CONT/PEAK:
126/130 dB
RECOMMENDED AMPLIFIER:
500 W RMS
LONG TERM POWER:
250 W
SHORT TERM POWER:
1000 W
NOMINAL IMPEDANCE:
8 ohm
CONFIGURATION:
2 way
