Högtalare
-
Talat utrymningslarm
-
Montering vägg
-
CE-märkning
-
Utanpåliggande högtalare
-
LB1-UM50E-D, Metal Cabinet
LSP 75/50W, Charcoal
Artnr. 752127

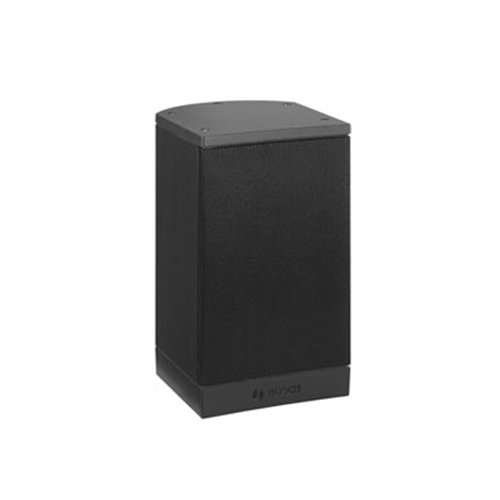

LB1-UM50E-D Premium-sound Cabinet Loudspeaker 50 W Charcoal
• High-fidelity music and speech reproduction
• Supplied with adjustable wall-mounting bracket
• Self-restoring overload protection
• Provision for internal mounting of the optional line / loudspeaker supervision board
• EN 54-24 certified
Dimensions (W x D)
405 x 160 x 180mm
Weight
5.58 kg
Product
LB1-UM50E-(D)
Description
Premium-sound Cabinet Loudspeaker
Maximum power
75 W
Rated power (PHC)
50 W
Power tapping
50 / 25 / 12.5 / 6.25 W
Sound pressure levelat rated power 1W (1kHz
108 dB / 91 dB (SPL)
1m)
90 Hz to 20 kHz
Effective frequency range
186° / 126°
Opening angle at 1 kHz / 4 kHz (-6 dB) Horizontal:
84° / 62°
Opening angle at 1 kHz / 4 kHz (-6 dB) Vertical:
20 / 70 / 100 V
Rated input voltage
8 / 100 / 200 ohm
Rated impedance
3-pole screw block
Connector
Aluminum & ABS
Material
Charcoal (RAL 7021) (D)
Color
