Högtalare
-
Utanpåliggande högtalare
-

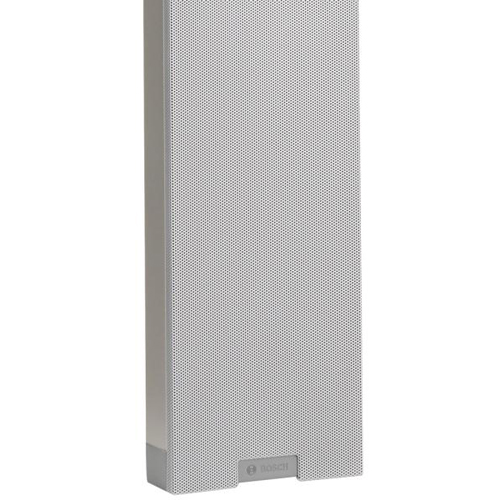

LBC3210/00 Line Array 90/60W
Indoor/Outdoor
Artnr. 752132
• Extended listening area
• Excellent intelligibility of speech and music
• Uniform distribution of natural sound throughout the room
• Provision for inside mounting the optional line/loudspeaker supervision board
• EN 54-24 certified
This loudspeaker, with its excellent directivity and high power output, can handle large (reverberant) indoor environments like airport departure lounges, train stations and congress venues. It is also suitable for outdoor use, for instance in railway stations or sports stadiums. Its full frequency range makes it ideal for speech as well as music reproduction.
Dimensions
(H x W x D). 1200 x 160 x 90 mm
Weight
9 kg
Maximum Power
90 W
Rated Power
60 / 30 / 15 W
Sound pressure levelat 60 W / 1 W (1 kHz
115 dB / 97 dB (SPL)
1 m)
190 Hz to 20 kHz
Effective frequency range (-10 dB)
170° / 90°
Opening angle 1 kHz / 4 kHz (-6 dB) horizontal
55° / 18°
Opening angle 1 kHz / 4 kHz (-6 dB) vertical
100 V
Rated input voltage
167 ohm
Rated impedance
Screw terminal block
Connector
Light gray (matches RAL 9022)
Color
