FBT QSA 112.0

2-way Passive Line Array - 12"+3X1" - 600Wrms+240Wrms-5°V

Artnr. 703773

The QSA 112.0 is part of the QSA passive constant curvature array featuring 1 x 12″ inch driver and 3 x 1″ driver.100H x 15V degree dispersion. Recommended amplification 600w/240w (Bi-Amp) RMS @ 8 Ohm will deliver 138dB SPL. This great combination is in a 18mm Baltic birch plywood cabinet completely made in Italy .

The fixed angle approach and constant curvature technology permit to simplify set-up while granting the best uniformity of coverage and SPL in the audience. Originally Intended for small and mid-sized venues, the QSA112/QSA112.0 combination, matched with the dedicated QS118S subwoofer, perform well also in medium/large touring events and is designed to the same high standards and uses the highest quality components which already characterize QSA’s serious approach to pro-sound. The QSA112/112.0 delivers extraordinary power handling, clarity, flexibility and, of course, stunning sound in an attractive, easy to handle and affordable package.

CONFIGURATION:
2 way
RECOMMENDED AMPLIFIER:
800/200 W RMS
LONG TERM POWER:
175/100 W
NOMINAL IMPEDANCE:
8 (8/8) ohm
FREQUENCY RESPONSE:
70Hz - 23KHz -6dB
LOW FREQUENCY WOOFER:
8 - 2 - neodymium inch
HIGH FREQUENCY DRIVER:
6 pleated diaphragm - neodymium inch
MAXIMUM SPL CONT/PEAK:
127/135 cont - 130/138 peak
DISPERSION:
100° x 10° HxV
INPUT CONNECTOR:
2 x speakon NL4 in&thru
DIMENSION (WXHXD):
450 x 220 x 350 mm
WEIGHT:
30 kg

Artnr. 495341

FBT MPA5120

booster 120Wrms - 100V/70V/50V/8 ? output - 230V/115V switch

Artnr. 703753

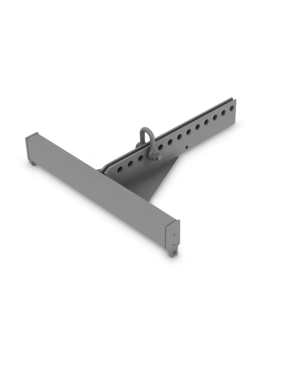

FBT MT-F 206
