Högtalare
-
Montering vägg
-
Montering tak
-
Kapslingsklass IP65
-

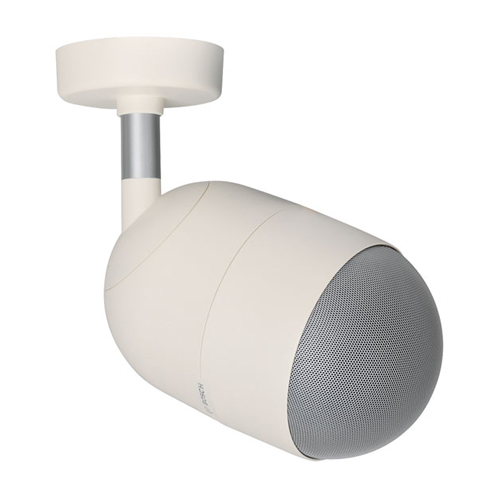

LP1-UC10E-1 Uni-dir. Spk. 10W
IP65, Evac, White
Artnr. 752112
• Superb speech and music reproduction
• Integrated connection cable
• Ceiling or wall mounting
• Water and dust protected to IP 65
• EN 54-24 certified
The LP1-UC10E-1 is a powerful, 10 W sound projector intended for high quality speech and music reproduction in indoor and outdoor applications. The state-of-the-art design is matched to both modern and traditional style environments. The sound projector is suitable for use in voice alarm systems.
Dimensions (D x L)
185 x 300 mm
Weight
3 kg
Maximum power
15W
Rated power
10 / 5 / 2.5 / 1.25 W
Sound pressure level @ 10 W / 1 W (1kHz
96 dB / 86 dB (SPL)
1 m)
220° / 65°
Opening angle @ 1 kHz / 4 kHz (-6 dB)
75 Hz to 20 kHz
Effective frequency range (-10dB)
100V
Rated voltage
1000 ohm
Rated impedance
White (RAL 9010)
Color
ABS
Material
