FBT AMICO 10 USB

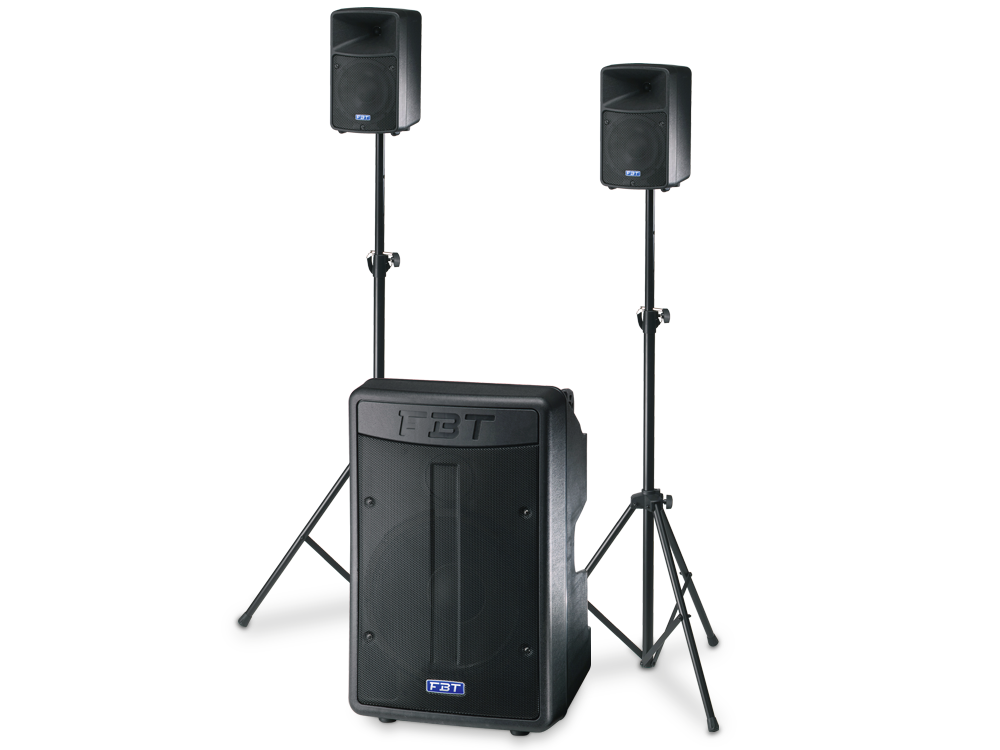

Processed Active Sound System: 15" + 2x(6,5"+1") - 500Wr

Artnr. 703690

Analog audio processor with 24dB/oct electronic crossover network and ADAP (Advanced Dynamic Active Protection) for total protection of the components
Removable back panel for access to the satellite speakers’ storage compartment. The back panel protects the satellite speakers and keeps them secure when transporting the complete system.
Multi-function knobs to block, unblock, and remove the cover/ lid transport handle.
A quick and easy set-up: complete system setup in less than 5 minutes! Just connect the satellite speakers to the AMICO 10USB amplifier outputs using the optional Speakon speaker cables and connect the AC power cable to an AC wall outlet
USB input/output to play back music programs/ files from a computer or to record from the master audio output of the AMICO 10USB to a computer – recording program
Built-in mixing console with 6 x XLR mic inputs with phantom power supply, 2 x mono inputs and 4 x stereo input channels, 3-band EQ, 99 selectable digital effects with effects send and return controls
3 Class D power amplifiers with switch mode power supplies to power the subwoofer and the two satellite speakers?

Processed Active Sound System

500W+2x150W – 130dB total SPL

3-way, tri-amplified Bass-Reflex system
14 channel mixer with 99 presets digital multi-effect and phantom power
USB connection for music programs in play and record

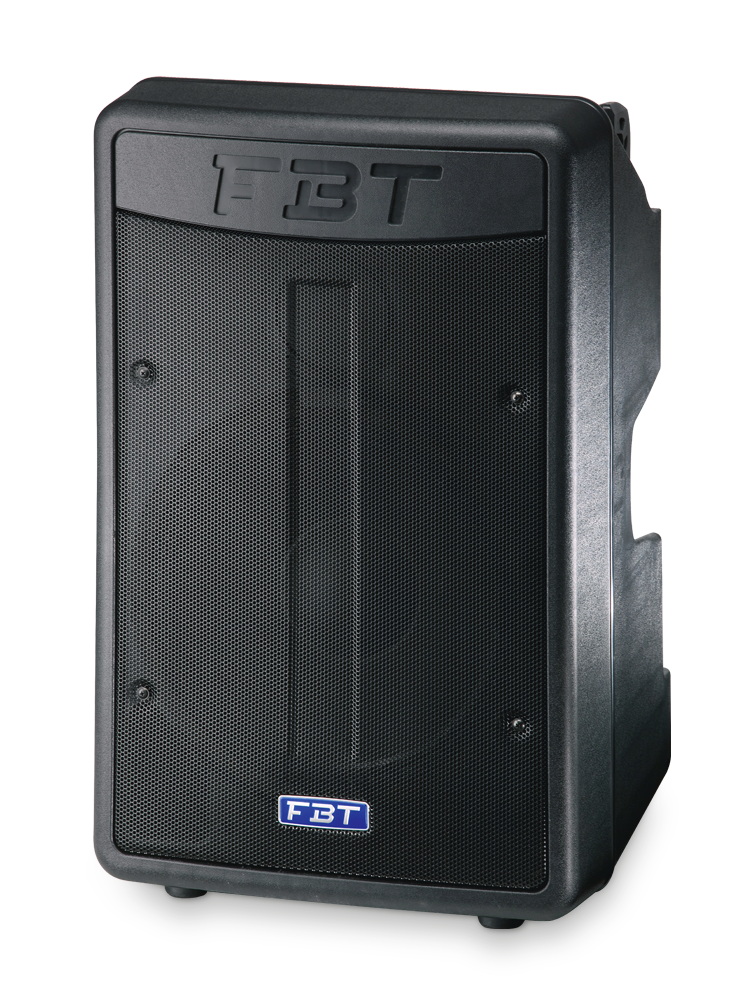

Subwoofer: 380mm (15”) high efficiency and high excursion custom woofer with a 75mm (3”) voice coil
2 x Two way satellite speakers: featuring 165mm (6.5”) woofers with 38mm (1.5”) voice coils, and a 25mm (1”) compression driver coupled to a 90°H x 60°V constant directivity horn
500W rms Class D amplifier for subwoofer
2 x 150Wrms Class D amplifier for the satellite speakers
Switch mode power supply

Artnr. 703691

FBT AMICO KIT

Bag + 2x Speaker stands + Cables for Amico 10 USB

Artnr. 703692

FBT V 44

Cover AMICO 10 USB
