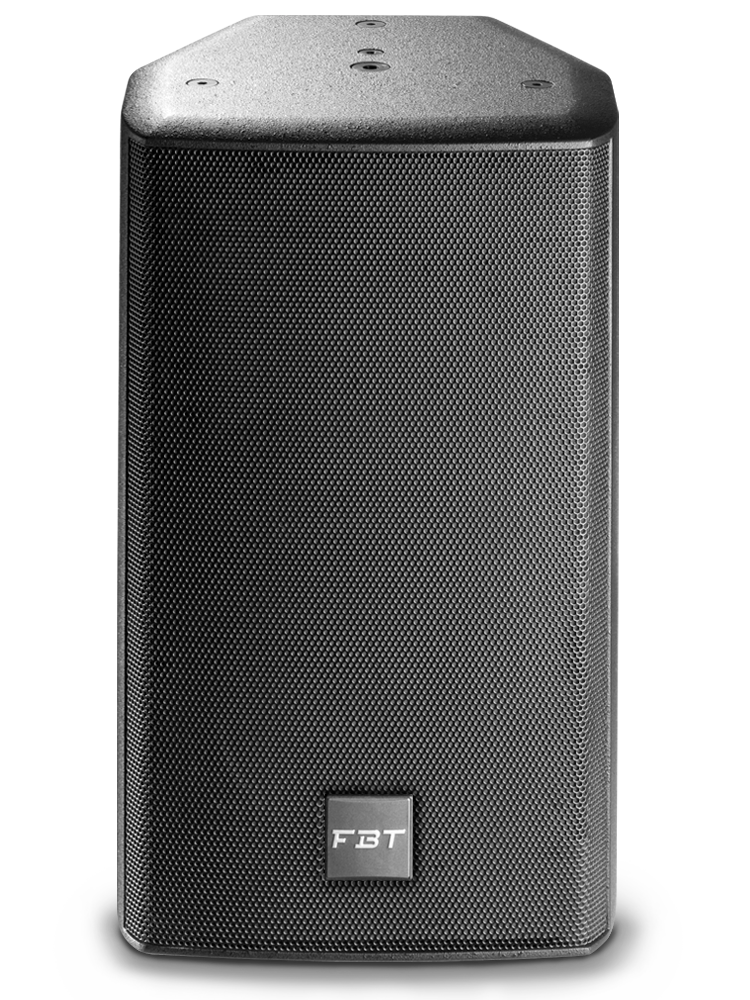

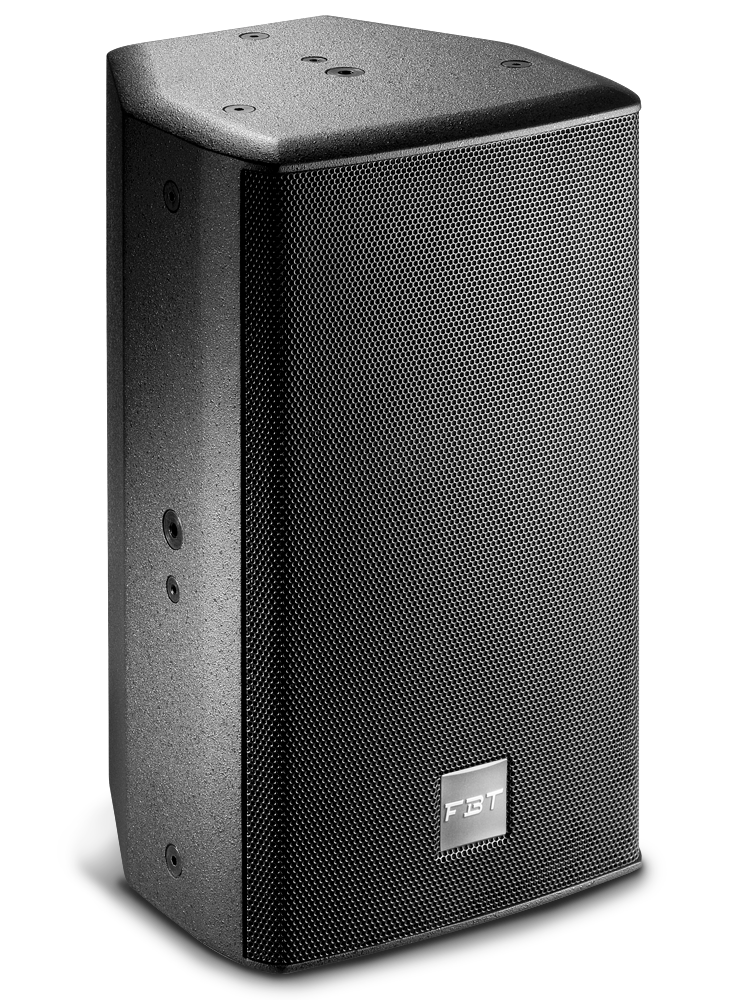

FBT ARCHON 110

2-way Passive speaker - 10" + 1" - 1" 80°x 50° rot. Horn

Artnr. 703838

The Archon 110 is B&C loaded 10″ woofer and 1″ Compression driver Bi-ampable full-range passive speaker designed to provide ample bandwidth and high SPL for an accurate sound reproduction in the installed sound market perfect for modern indoor spaces.

  • 1 x 10” (2.5” VC) B&C custom made high excursion LF woofer.
  • 1 x 1” (1.7” VC) B& C custom made HF compression driver.
  • 1 x 1” FBT rotatable 80° x 50° constant directivity horn.
  • 2-way, passive sound reinforcement systems.
  • 15mm (0.6”) baltic birch plywood cabinets.
  • B&C custom designed high excursion LF woofers.
  • B&C custom designed HF compression drivers.
  • Full range / bi-amp crossover networks with protection.
  • 2 x Neutrik NL-4 speakon connectors.
  • 1 x 4 Euroblock terminal speaker connector.
  • 12 x M10 threaded rigging points.
  • 2 x metal flange threads for U bracket wall mount.
  • Acoustically transparent steel grille and antidust protection cloth.
  • Rear pocket handle to ease lifting and installation of the cabinet.
  • 35mm (1. 3/8”) top hat for speaker stand.
  • New FBT rotatable logo badge following vertical or horizontal installation.
  • Optional mounting hardware.
  • Optional line transformer 200W.
DISPERSION:
80°x50° HxV
CROSSOVER FREQUENCY:
1.8 passive or active Bi-Amp KHz
RECOMMENDED HP FILTER:
45hz - 24dboct
RECOMMENDED EXTERNAL FILTER:
Digital Management with presents
FREQUENCY RESPONSE:
60Hz - 18KHz -6dB
INPUT CONNECTOR:
2 x Speakon NL 4 in & thru 4 x Euroblock
LOW FREQUENCY WOOFER:
10 - 2.5 coil inch
DIMENSION (WXHXD):
320 x 550 x 325 mm
HIGH FREQUENCY DRIVER:
10 - 2.5 coil inch
WEIGHT:
15 kg
SENSITIVITY (@1W/1M):
97 dB
MAXIMUM SPL CONT/PEAK:
125/129 dB
RECOMMENDED AMPLIFIER:
700 W RMS
LONG TERM POWER:
350 W
SHORT TERM POWER:
1400 W
NOMINAL IMPEDANCE:
8 ohm
CONFIGURATION:
2 way

Artnr. 703860

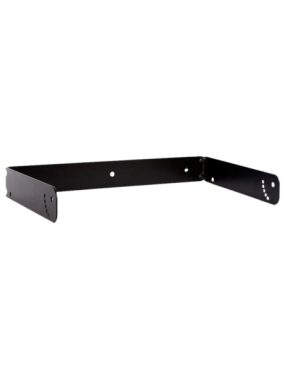

FBT AC-U 110H

Wall metal stand to mount ARCHON 110 in horizontal

Artnr. 703697

FBT AX 2000

2 Ch. Power Amp - 2x1000Wrms (4ohm) - 2000Wrms (8ohm bridge)

Artnr. 703693

FBT DLM-26

2 In x 6 Out Digital Loudspeaker Management processor
