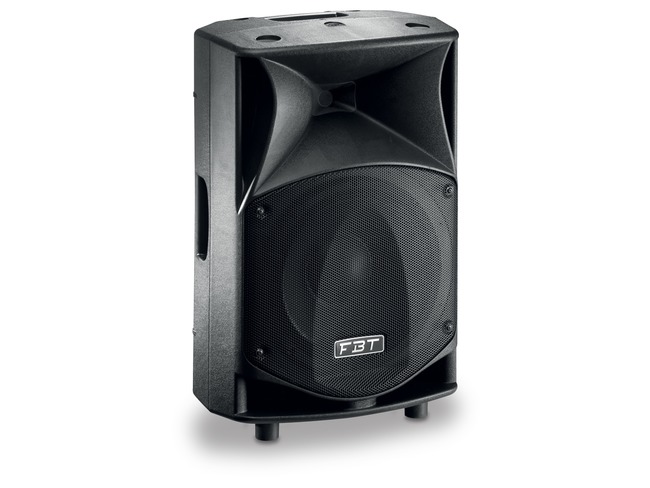

FBT JMaxX 112A
2-way Bass reflex Active speaker - 12" + 1" - 700Wrms+200
Artnr. 703641
Flera modeller tillgängliga
12” LF woofer with 2” voice coil
1’’ exit throat HF compression driver with 1” voice coil
Frequency response from 48Hz to 20 kHz
Extremely lightweight: only 13.8Kg
2-way, bi-amplified bass reflex design cabinet
700W RMS LF, 200W RMS HF, Class D power amplifiers with switch mode power supply
DSP with 4-EQ presets
Control panel with: XLR IN and XLR LINK, Volume, EQ presets, HP filter, GND LFT switch
2 x M10 suspension points, 35mm (1.3/8”) top-hat speaker stand socket, wall bracket mount flange plate
90°H x 60°V constant directivity horn
Stage monitor angling facility with 12°, 40° or 55° taper
DIMENSION (WXHXD):
402 x 644 x 345 mm
WEIGHT:
13.8 kg
MAXIMUM SPL CONT/PEAK:
125 / 131 dB
DISPERSION:
92° x 60° HxV
INPUT IMPEDANCE:
22 Kohm
INPUT CONNECTOR:
XLR with loop, Jack 6.3mm
POWER CORD:
5 16,4 m/ft
BUILT-IN AMPLIFIER LF/HF:
700/200 W RMS
FREQUENCY RESPONSE:
48Hz - 20KHz -6dB
LOW FREQUENCY WOOFER:
12 - 2 coil inch
HIGH FREQUENCY DRIVER:
1 - 1 coil inch
CONFIGURATION:
2 way
