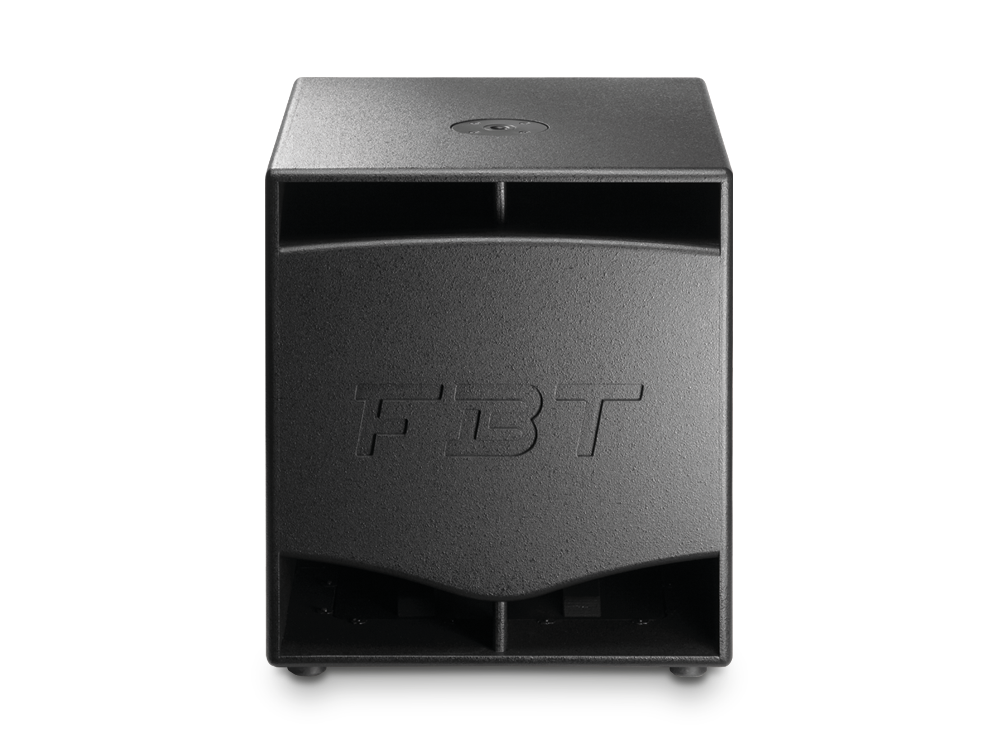

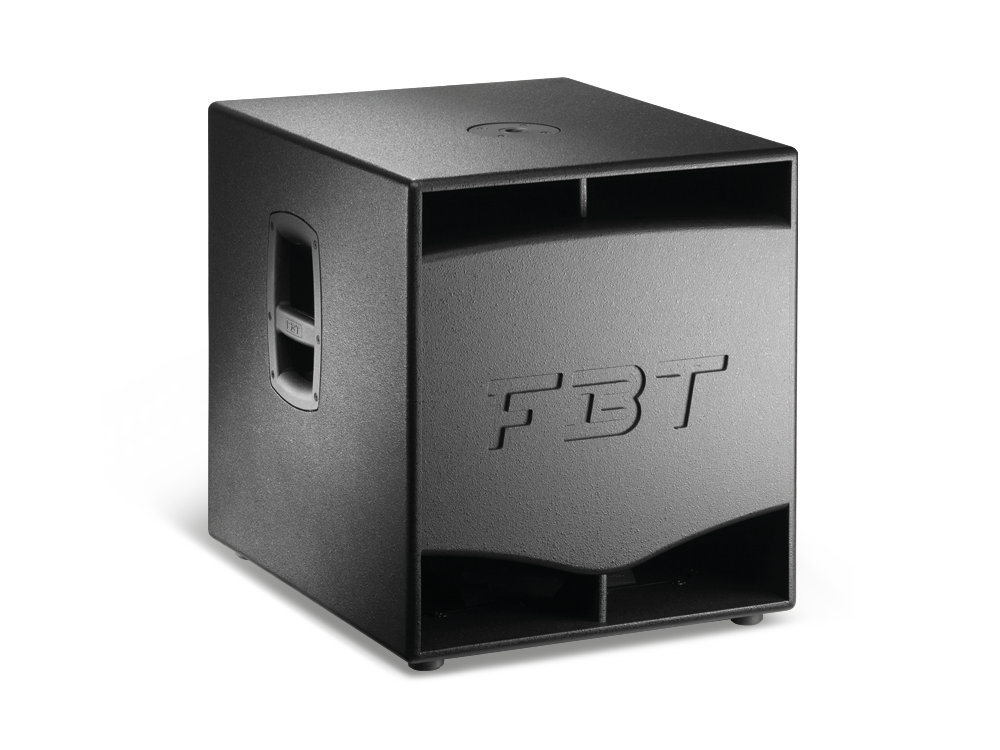

FBT PROMaxX 15SA

Processed Band-pass Active Subwoofer - 15" - 1200Wrms

Artnr. 703619

Flera modeller tillgängliga

Compact band-pass design subwoofer with high SPL and punch
380 mm (15”) high excursion woofer with 75 mm (3”) voice coil, custom made for FBT by B&C
Frequency response from 38Hz to 120Hz
1200W RMS Class D power amplifier with switch mode power supply
Digital Signal Processor with 8 presets, 2 equalization with 4 LPF different frequency
Control Panel with XLR input and link out, Volume, EQ Presets, Delay, Phase Switch 0°-180°, Ground-Lift Switch
15mm (5/8”) Baltic birch plywood cabinet with scratch & scuff resistant paint finish
M20 (20 mm) top mount speaker stand socket, two aluminum carrying handles
Provides additional low frequency reinforcement when used along with 2 – way ProMaxX speakers?

INPUT CONNECTOR:
XLR with loop
POWER CORD:
5/16.4 m/ft
DIMENSION (WXHXD):
507 x 585 x 605 mm
WEIGHT:
31 kg
MAXIMUM SPL CONT/PEAK:
132/136 half-space dB
DISPERSION:
omnidirectional HxV
INPUT IMPEDANCE:
22 Kohm
CROSSOVER FREQUENCY:
preset dependant KHz
AC POWER REQUIREMENTS:
640 VA
BUILT-IN AMPLIFIER LF/HF:
1200 W RMS
BUILT-IN AMPLIFIER PEAK LF/HF:
2400 W
FREQUENCY RESPONSE:
38Hz - 120Hz -6dB
LOW FREQUENCY WOOFER:
1x15 - 3 coil neodymium inch
CONFIGURATION:
800 way

Artnr. 703625

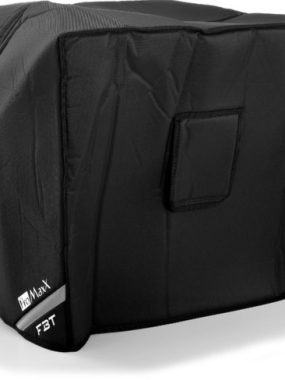

FBT V 65

Cover PROMaxX 15

Artnr. 703626

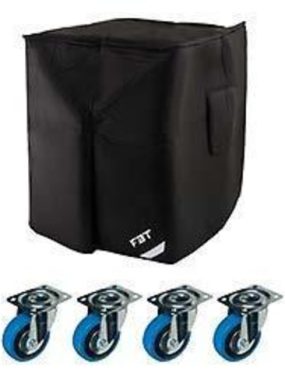

FBT PM-CH 15S

Cover PROMaxX 15 with wheels
