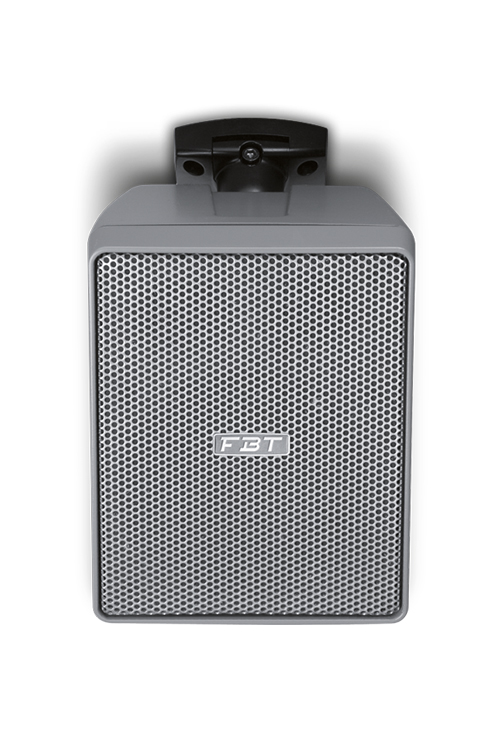

FBT SHADOW 105T

IP 55 2-way Full Range - 5"cone + 1"dome - conical 90° ho

Artnr. 703850

Flera modeller tillgängliga

Multipurpose 5” Full Range

120W/8ohm – 112dB SPL

This is the most compact model in the SHADOW family. It’s built to provide high quality voice and music performance in both indoor and outdoor venues. Suited for installations in kiosks, water parks, cruise ships, queue lines, ticket counters, train platform, sport venues and many other applications.

  • 2 way configuration with an high power 5” cone and 1” dome for high frequencies
  • 100V line transformer with selectable 50W/25W power tapping
  • Die-cast aluminum wall bracket with ball/socket for multi angle adjustment capability, with a security cable
  • 4 wires cable to select the desired power tapping

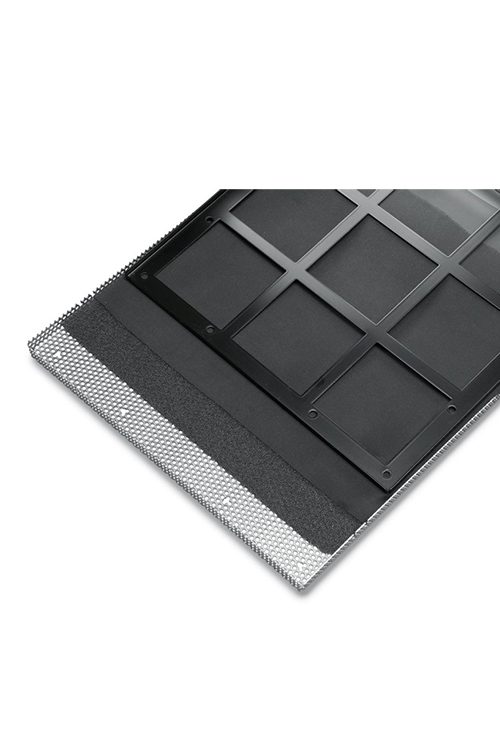

  • Water-stop grill with 3 layers of protection
  • IP55 weather resistant
  • Standard grey finish
  • RAL 7011

The smallest of the Shadow range. Ideal in both indoor and outdoor venues because of its IP55 weather resistant rating. Both 8 Ohm 120 watt recommended amplifier at 8 Ohms 60 W continuous and 100 Volt line inputs via multicore cable. 15/25/40/50 100V tappings. 5″ driver with 1″ dome tweeter Stylish RAL 7011 slate grey colour. built in adjustable bracket supplied.

Configuration
2 Way
Frequency response
90Hz - 20kHz
Low frequency woofer
5" with 1" VC
High frequency driver
1" Dome Tweeter
Maximum SPL cont/peak
109 / 112dB
Dispersion
100 (H x V)
Input impedance
8 Ohm
Crossover frequency
3kHz
Input connector
4 Wire Cable
Dimension (WxHxD)
168 x 222 x 200 mm
Weight
3.5kg
