• Ljudsystem

FBT J 5A

2-way Active speaker - 5" + 1" - 80Wrms+40Wrms

Artnr. 703647

Flera modeller tillgängliga

2-way bi-amplified system in Bass-Reflex2-way bi-amplified system in Bass-Reflex
Polypropylene enclosure with integrated handle except J 5A/5
2 x M10 anchoring points (15A, 12A, DJ 15A), 2 x M6 suspension points (8A, 5A)
25mm (1”) HF custom AF compression driver (15A, 12A, 8A, DJ 15A)
90°H x 60°V constant directivity horn (15A, 12A, 8A, DJ 15A)?

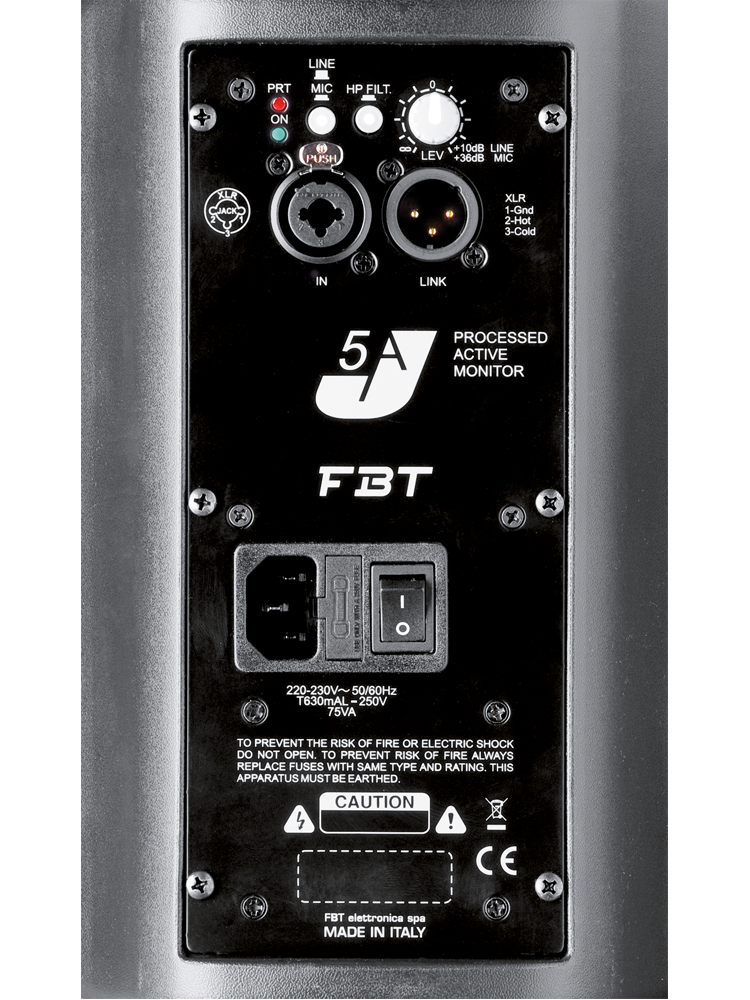

Processed Active Monitor

80W+ 40W RMS – 117dB SPL
130mm (5’’) custom woofer with improved efficiency and linearity
25mm (1’’) neodymium silk dome tweeter with soft compression and phase plug
80Wrms class D amplifier for LF and 40Wrms for HF.
Low noise toroidal transformer power supply
On-board analog signal processing with limiter for high SPL and high reliability.
Available in white colour 5AW

DIMENSION (WXHXD):
170 x 275 x 180 mm
WEIGHT:
3.4 kg
MAXIMUM SPL CONT/PEAK:
113 / 117 dB
DISPERSION:
90° x 90° HxV
INPUT IMPEDANCE:
22 Kohm
INPUT CONNECTOR:
XLR combo with loop
POWER CORD:
5 / 16.4 m/ft
BUILT-IN AMPLIFIER LF/HF:
80/40 W RMS
FREQUENCY RESPONSE:
80Hz - 20KHz -6dB
LOW FREQUENCY WOOFER:
5 - 1 coil inch
HIGH FREQUENCY DRIVER:
1 dome - 0.75 coil inch
CONFIGURATION:
2 way

Artnr. 703660

FBT V 36

Cover for 2 x J 5

Artnr. 703668

FBT SJ-5

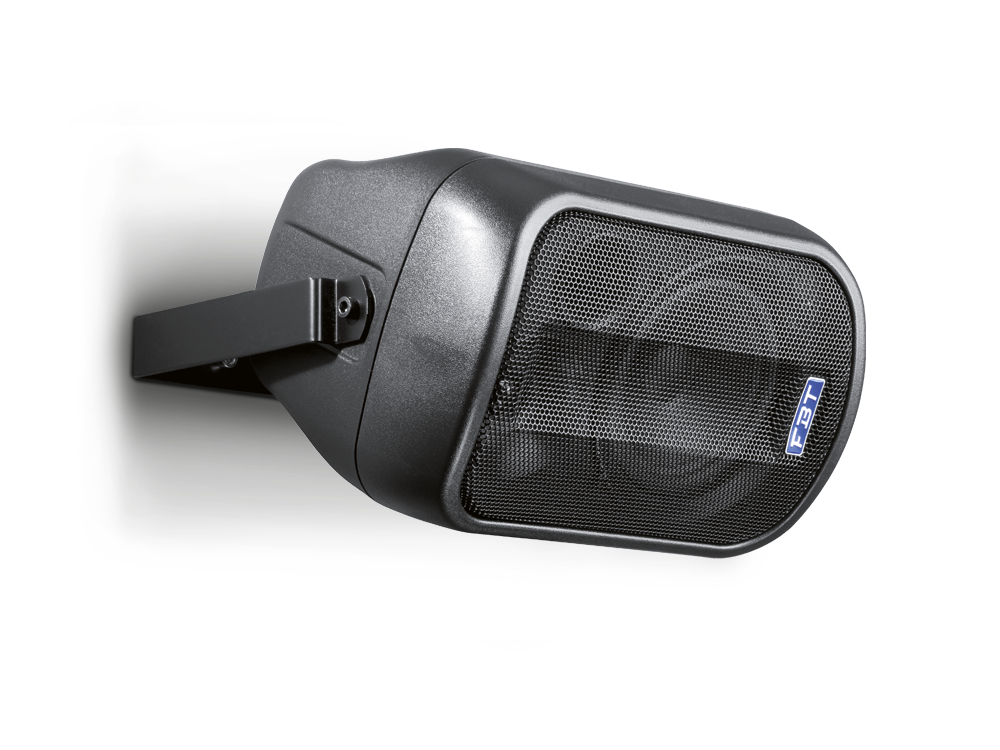

Directional wall mount for J 5

FBT SJ-5U

Artnr. 703670

FBT SJ-5U

Directional wall mount for J 5

Artnr. 703672

FBT SJ-5T

"Adjustable metal "T" stand for No. 2 J 5"

Artnr. 703674

FBT AJ-5

MS 30BK Adapter for fixing purposes J 5
