• EN54-24

    EN54 del 24 - Högtalare för talat utrymningslarm

  • Kapslingsklass IP55

    Kapslingsklass IP55

FBT SHADOW 108CT/EN

IP 55 Coax speaker - 8" + 1" - conical 90° horn - 300Wrms

Artnr. 495324

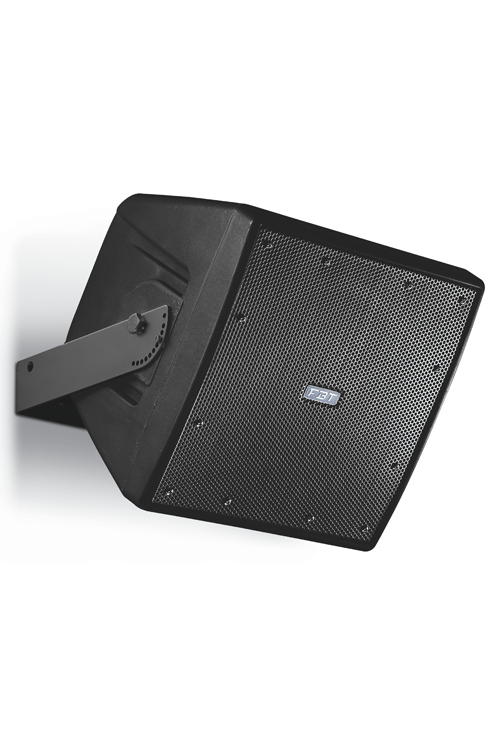

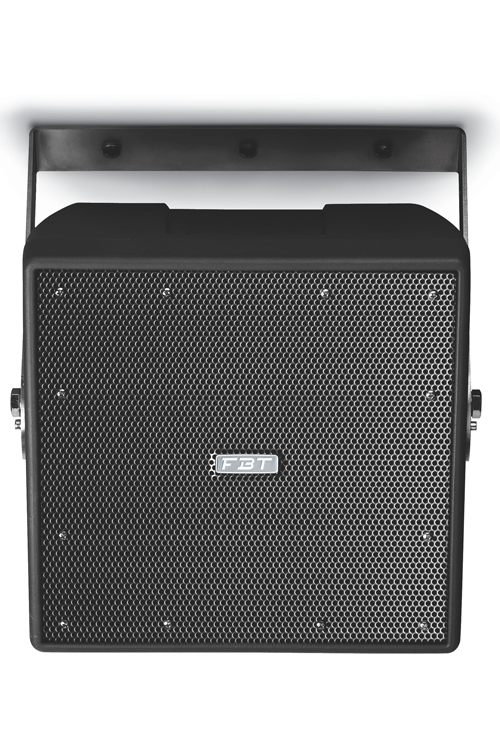

The FBT SHADOW 108CT/EN is a weatherproof coaxial two way loudspeaker system offering substantial power and efficiency for a variety of professional indoor or outdoor applications. The low frequency transducer is a 8″ woofer with a 2″ voice coil. The high frequency section is a 1″ driver with 1.4″ voice coil on conical 90° horn. The FBT SHADOW 108CT/EN features a standard 100V line transformer. The cabinet is a single piece rotational moulded in polypropylene, fully UV protected. The FBT SHADOW 108CT/EN is internal equipped with ceramic terminal block and thermal fuses ensuring the continued operation of loudspeakers in the event of a fire; in addition all connections use flame-retardant cabling which adheres to the EN50200 standard (with IP68 airtight cable glands). The cabinet is equipped with a stainless steel U-bracket. The grille is in custom perforated stainless steel with 3 layers of protection. The FBT SHADOW 108CT/EN meets the requirements of EN54-24 and IP55 code (International Protection Rating).

  • 2-way multipurpose 8″ coax
  • Sturdy molded polypropylene curved enclosure
  • 8″ coaxial woofer with 2″ coil
  • 1″ HF driver with 1.4″ coil
  • Line transformer
  • 4 wires cable to select the power tapping
  • IP55 weather resistant
  • EN54-24 certified
  • Standard black color
  • Completely manufactured in Italy
Frequency response
94hz-20khz -6db
Input connector
4 wire cable
Low frequency woofer
8 - 2 coil inch
High frequency driver
1 - 1.4 coil inch
Sensitivity (@1w/1m)
94 db
Dimension
285 x 285 x 250 mm
Weight
7 kg
